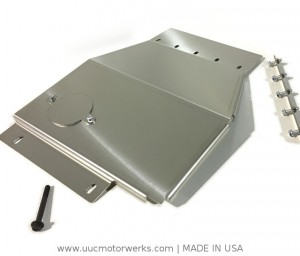

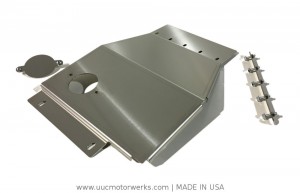

UUC E30 325I SUMP GUARD M52/S52 SWAP
£244.92 inc. VAT
Product Code: skidpl8e302
Click to Enlarge
Click to Enlarge
Click to Enlarge
Description
PLEASE NOTE: THIS VERSION DESIGNED TO FIT E30 3-SERIES MODELS WITH M50/M52/S50/S52 MOTOR SWAPS. OIL DRAIN PLUG PORT IS IN THE CORRECT LOCATION FOR THESE ENGINES.
With a lowered E30, there is the constant risk of scraping the oil pan on speed bumps, driveways, or other road debris. Replacing a damaged oil pan is expensive, and the sudden loss of oil from a broken pan means nearly instant engine destruction.
The UUC E30 MOTOR SWAP skid plate is available for all 1984-1992 E30 3-series models with updated E36 M50/M52/S50/S52 engines installed:
- 325i, 325iS, 325, 325e, 325eS
- NOT for 325iX
Features
- Stainless steel in a nearly bulletproof 10-gauge thickness gives true armor protection.

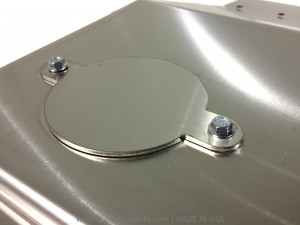

- Oil drain plug cover. No hole leaving the vulnerable oil drain plug exposed.
- All hardware included. Grade 10 or 8.8 in the various locations meets or exceeds BMW specification for strength. - - Self-locking flange head hardware will not come loose.
- Precision construction with slotted mounting holes. While every one of our skid plates is identical, that's not necessarily true for all E30s. Due to over 25 years' worth of use, some E30s may have their front radiator support in a position slightly different than when new... and the slotted holes in the UUC skid plate accommodate those variations.
- Quality materials. The entire assembly is constructed in the USA of premium stainless steel alloy and plated hardware for a lifetime of use
- Extended front mounting lip. The extra couple of inches at the front of the UUC skid plate help box in the radiator air inlet area for improving cooling efficiency.
- Integrated threaded holes. Welded-on hardware means no fumbling around with loose nuts during installation.
- LEGAL FOR SpecE30 RACING.
- 100% MADE IN USA
Estimated Volumetric Shipping Weight : 6.00 Kg
