E36/E46 COUPE & Z4 STREET REAR SHOCK MOUNTS (PAIR) FULL PLATE

Using urethane bushings that can be installed in either a stiff or semi-stiff position, this is the perfect rear shock mount for BMW E36, E46 and Z4 cars.

Will not fit Convertibles or E30s

Made of 6061 aircraft aluminum, these mounts are a perfect fit for any shock.
Two steel studs mounted to a steel bracket sandwich this mount to the body, and allow quick access from under the wheelwell for adjusting rear shocks, especially Konis.
This part, including the urethane bushings, has a lifetime guarantee to the original purchaser. Price is per pair.

available for 10mm, 12mm, 14mm shock absorber shaft.

Estimated Volumetric Shipping Weight : 3.00 Kg



Click to Enlarge

Click to Enlarge

REF: BMWMOUNTRACE

Rear shock mount to fit BMW, only recommended for race cars.

If you are racing, and especially with coil-over shocks, you need this monoball rear mount that slides for spring to tire clearance.

Complete with shock stem adapters.Uses a spherical bearing instead of urethane or rubber. Please specify 10, 12, 14 or 16mm stem diameter.

Billet aluminum with spherical bearings.

Note that ALL Ground Control rear shock mounts are clamped to the body for extra strength. Price per pair.


Estimated Volumetric Shipping Weight : 3.00 Kg



Click to Enlarge

Click to Enlarge

Ref: LowerInBearing-1

• Replaces your soft worn lower - inner control arm bushings with a serviceable bushing that houses a spherical pivot bearing.
• Eliminates unwanted flex.
• Reduces deflection for more precise handling.

Also fits M3 models.

Priced as a pair.

WE ALSO SELL SIMILAR UPGRADE FOR THE "UPPER - INNER" CONTROL ARM BUSH, PLEASE SEE OTHER LISTING FOR THIS ON SAME PAGE AS THIS ITEM. 10% DISCOUNT IF ORDERING BOTH PAIRS TOGETHER.

Estimated Volumetric Shipping Weight : 7.00 Kg



Click to Enlarge

NYLON SPRING ALIGNMENT CONE

Our nylon spring alignment cones for the BMW E30 and BMW E36/E46 and BMW Z4M Chassis. These cones are made to align the rear springs in the chassis rails.

Made to fit 2.25" Inner diameter and 2.50" inner diameter springs only, please specify spring diameter when ordering.

**SOLD AS A PAIR ONLY**

Please specify vehicle and model when ordering.

Estimated Volumetric Shipping Weight : 2.00 Kg



Click to Enlarge

Ref: GCSpanner

This is a replacement spanner for Ground Control coilover kits.

This spanner is included only in certain GC coilover kits, so if your GC coilover kit included a spanner, then you do not need to buy this.

The most common misconception why people think they may need a spanner, is that they are tilting the car on its side to adjust the collars, so they are fighting the swaybars. The swaybars are designed to keep the car from tilting by pushing against the suspension, which makes it difficult to turn the adjuster by hand.

A spanner could easily ruin things if used under these conditions.

If this describes your situation, try lifting the front or rear of the car off the ground, and adjust with your hands.

Estimated Volumetric Shipping Weight : 2.00 Kg



Click to Enlarge

Click to Enlarge

Ref: BMWmountTall-8

These mounts are much stronger than stock, and include urethane bushings and heavy-duty hardware, to reduce deflection and improve the performance of your dampers.

Reduces droop on long shocks.
Helps retain rear springs on lowered cars.

All parts are anodized or zinc plated for corrosion resistance and long life.
Reinforcement brackets strengthen shock tower and install from the top down to ease installation.

Includes all hardware and factory gaskets.

Replacement bushings are available if needed.

** When ordering please specify 10mm or 12 mm shock stem diameter, shock brand of manufacturer and vehicle.

All Ground Control parts are proudly made in the USA.
Priced per pair.

Estimated Volumetric Shipping Weight : 11.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Powerflex uprated suspension bushes, available in 'STREET' for normal road use or 'BLACK' for track/racing use.

Polyurethane has been with us as a specialised plastic for some thirty years. However recent advances have now made it possible to engineer very special properties into this exciting material. Suspension bushes are some of the most highly stressed components fitted to a motor car. They undergo enormous strains and in the most arduous of conditions with no maintenance or lubrication.

The material that OEM bushes are manufactured from, is a rubber compound containing natural products which deteriorate with age. It becomes softer and more pliable, resisting the forces placed on it less and less. Therefore allowing more and more movement of suspension components and offering less and less control over the suspension geometry.

This in turn causes accelerated tyre wear, braking instability and poor handling. This is the single biggest reason you can instantly tell the difference driving a three year old car compared to a showroom new one. However even new cars will benefit from POWERFLEX bushes because of their superior design they offer much more effective control of the suspension components to a much greater extent than normal rubber items.

POWERFLEX for prolonged tyre life. With the technological advances in the material used, it has been possible to overcome the common problem associated with harder bushes, which is increased noise. By correctly engineering the polyurethane compound, bushes can be made 25-30% stiffer than new rubber items but with exactly the same noise absorbing properties.

POWERFLEX bushes make sense.
POWERFLEX for improved performance.
POWERFLEX for increased safety.


Please see the attached price list link below.

Please call or E-Mail us to discuss /place your order.


Estimated Volumetric Shipping Weight : 1.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

RE part number rsm

The World's Best Selling and Best Performing Rear Shock Mount for z3/4/E36/46 Models !

The BMW factory rear shock top mounts are well documented as a very poor design, even when brand new they perform VERY poorly, far too much movement in them, and they are essentially worn out every 20- 30 k miles.

Say goodbye to vague real chessis feel rear end clunks! With the introduction of the Rogue Engineering Rear Shock Mounts, you have a high quality, rebuildable, easily serviceable rear shock mount.

Fits the following vehicles...
All E30, including M3
All E36, including M3, Z3 and 318ti
All E46, including M3
All Z4, including MZ4

Rogue Engineering Rear Shock Mount Set includes:

Two (2) Rogue Engineering 6061-T6 CNC, Anodized Rear Shock Mounts.
Four (4) Shore A 65 Bushings (2 required per mount).
Two (2) 303 Stainless Steel Bushing Spacers (to be used with standard 10mm rear shocks).
Four (4) 303 Stainless Steel Washers (2 required per mount).
Four (4) Yellow Zinc plated serrated lock nuts.
Two (2) Shock Tower Reinforcement Assemblies (with 10.9 hardware welded).
Two (2) factory gaskets (#3352 1128 734).

Problems with Factory Mounts
The factory BMW rear shock mounts are generally a little soft, to provide the most possible acoustically dampening in the vehicle. However, design precludes them from being stout enough to withstand the rigours of aftermarket suspension, or even badly damaged roads. A decent sized pothole can send a perfectly good factory rear shock mount to pop out, making it entirely useless necessitating replacement. Upgrading to E46 M3 rear mounts (a popular alternative) is not a guarantee that it doesn't happen again and again.

Rogue Engineering Rear Shock Mount Features
By producing a rear shock machined from 6061-T6 aluminum, we are able to attain a more stable and stiffer platform which to mount the top of the rear shock. However, rather than use race-only spherical bearings or even overly stiff urethane bushings, we specify Shore A 60 hardness rubber bushings (approximately 30% stiffer than the factory bushings) to allow for street comfort and compliance. Our findings show that overly stiff urethane bushings do not allow the rear shock to move, making the attachment of the lower part of the shock under strain.

The construction of the aluminum shock mount plate and orientation of the bushings makes it impossible for the bushings to "pop out" in the manner which the factory style mounts fail. Since the bushings are rubber, when they require replacement, rebuilding them takes only a matter of minutes. Only 4 bushings require replacement (for a pair of RSMs) and are available at extra cost.

Other important details include the use of 303 stainless steel components (compression washers and spacers) for long-lasting corrosion resistance. All other hardware is metric, and either Grade 8 or better, treated with a yellow zinc plating, again for corrosion resistance.

Another feature is the reinforcement assembly which secures the rear shock mount to the vehicle. By reinforcing the top of the shock tower in the vehicle, it protect against the rear shock from ripping out the sheet metal. The reinforcement has its hardware welded to it, allowing for the rear shock mount to become a bottom-mount design. This means that if the rear shocks need to be removed, it only requires removing the two nuts and the single bolt at the bottom of the shock. No need to completely disassemble the trunk area to gain access. If being used with a rear strut tower brace, the reinforcement assembly may be mounted from the bottom, so that the rear shock mount can be secured in the traditional manner.

The Rogue Engineering Rear Shock Mounts are designed to be used with standard 10mm rear shocks, but can also be used with 12mm adjustable race shocks with the use of optional washers.

Estimated Volumetric Shipping Weight : 1.00 Kg



Click to Enlarge

Click to Enlarge

Rogue Eng: RE.484

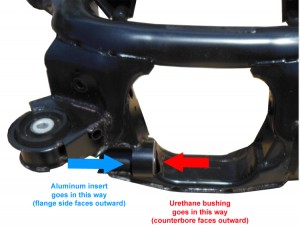

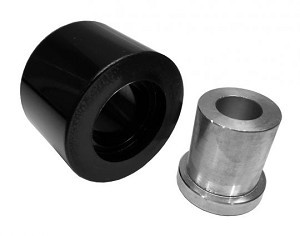

Rogue Engineering has developed a two piece bushing that installs into the rear subframe preventing the movement from the slop of a worn or broken rubber factory bushing. Our Shore 94A hybrid urethane/6061 aluminium bushing not only prevents the unwanted movement but without additional NVH often times seen with solid mounts (such as Delrin or full aluminium).

This bushing replaces the factory bushing # 33-17-2-282-484

These are a direct bolt in for the following vehicles:
2001-06 BMW E46 M3, including coupe and convertible
2007-08 BMW MZ4, including coupe and convertible

Estimated Volumetric Shipping Weight : 1.50 Kg



Click to Enlarge

RE part number re.pem

Finally, a real performance engine mount for those looking for the extra edge. Until now, the only performance engine mount to really consider was the BMW Motorsport Group N engine mounts priced at an incredible $800/pair! These uber expensive mounts were just like factory engine mounts except they were produced with a harder rubber, approximately 30% stiff than stock.

The Rogue Engineering Performance Engine mount is a affordable alternative to the BMW Motorsport Group N mounts, at a fraction of the price. Because these are produced with isolated mounting plates, it does offer similar vibration dampening characteristics like stock. Of course, because of the harder nature of these bushings, some additional vibration may be experienced, just like the BMW Motorsport Group N engine mounts.

Just like factory, but better
The factory-like design incorporates the anti-rotational tabs ensuring that the mounts do not rotate. Use of these mounts virtually eliminates all deflection created from the engine. This is especially true for high-powered vehicles such as those with turbos or superchargers.

The internals of the mount feature a unique locking system in the event of a crash, the internal hardware of the mounts prevent complete failure of the mount. Whereas the integrity of the mount will be compromised, its internal construction prevents the mounts upper and lower plates from completely tearing away from each other. Whereas this may seem to be a small feature, this will ultimately decrease the chances of the engine from breaching the firewall, and entering the internal compartment of the vehicle. No other performance mount can make this claim.

Additional Features
While these mounts are produced in limited quantities here in the US, we have also built these engine mounts to be 5mm shorter than stock, to allow for lower engine mounting height (lowering the center of gravity). Matching performance transmission mounts are also available with purchase. The mounts include 5mm spacers, in the event the user would like to maintain the factory engine mounting position.

Fits the following vehicles:
All 1992-1999 E36 M3, 328, 325, 323, 318
All 1999-2006 E46 M3, 330, 328, 325, 323
All Z4
All Z3

PLEASE SPECIFY EXACT VEHICLE DETAILS WHEN ORDERING.

Fitting Time: 2.00 hours.
Estimated Installation Cost at Crest Workshops : £120.00 inc. VAT
Estimated Volumetric Shipping Weight : 1.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

RE part number rtab.shim

Rogue Engineering RTAB Reinforcements,
Improve the handling of your E36/E46 in less than an hour! These RTAB reinforcement shims limit rear toe suspension changes of the rear trailing arms. These shims fill the voids that the factory rubber bushings, increasing the effective stiffness of the bushing without additional NVH (noise vibration harshness). These shims do not affect ride quality and are perfect for those who are looking for an improvement in handling.

Factory Bushings Don't Last Forever.
Where as the factory rear trailing arm bushings are a common replacement item, few realize that all E36 models (including M3s) use a "light duty" rear trailing arm bushing. Not until the advent of the 1996-1999 M3 was an improved bushing used, to handle the extra power of the later model E36s.
Even if your car is relatively stock, these bushings are known to dry rot and crack, causing diminished performance. Getting regular alignments are pointless unless these are inspected regularly, and replaced when necessary.

Fits the following vehicles:
- All E36, except for Z3/318ti
- All E46, including M3
- All Z4


Estimated Volumetric Shipping Weight : 5.00 Kg



STREET VERSION, (LISTED THIS PAGE)
Click to Enlarge

RACE VERSION (SEE NEXT PAGE)
Click to Enlarge

RUBBER SPLITTING ON RTAB
Click to Enlarge

Click to Enlarge

Click to Enlarge

Re part number re.tab.trk

Rouge Engineering Blue (track - race) or black (street - track) uprated rear trailing arm bushes.
**THIS PAGE LISTS THE STREET / TRACK (BLACK) VERSION BUSHES, PLEASE USE RED "VARIATIONS" BUTTON TOP RIGHT OF THIS LISTING TO SEE THE TRACK / RACE (BLUE) VERSION.

Problems with Factory Mounts:
The factory BMW RTABs (Rear Trailing Arm Bushings) are a very soft material to provide the quietest, most comfortable ride possible. Because of this, we have seen factory mounts require replacement in less than 50,000 miles and 3 years. On modified vehicles, expect them to require replacement sooner.

Are your bushings already shot?
A simple test to determine if the stock rear trailing arm bushings require replacement is driving the vehicle in a straight line. While in gear, under full acceleration, does the car pull to one side? Additionally, under full, firm application of the brakes, does the car pull again? If you answered yes to either one, the bushings probably require replacement.

Rogue Engineering Performance RTABs
The bushing material used in Rogue Engineering Performance RTABs are now available in two different compounds, specifically for your needs. Both compounds now incorporate a silicone impregnated, polyurethane compound. The biggest different being the hardness of the material.

1. Blue Compound - This harder compound is designed for TRACK applications, where monoball components are not allowed. Less expensive than full Delrin bushings, these bushings are extremely stiff to provide the absolute maximum performance at the TRACK. Purposefully engineered to approximately Shore D 65 hardness. Please note, because of hardness of this compound, these can transmit more noise, vibration, and harshness.

2. Black Compound -This compound is formulated for STREET applications. Softer than the blue, TRACK compound, these are stiffer than stock factory OEM bushings, and designed to last much longer than stock. Since these are the great compromise between OEM and our TRACK bushing. Engineered to approximately Shore A 93 hardness.

RACE/TRACK
Our RACE/TRACE application uses a race-quality, high-load spherical bearing in a CNC'd machined aluminum housing. This part eliminates ALL deflection in the rear trailing arm.

This hardness is important in this bushing especially in modified vehicles, since they will exert more force on the rear suspension during acceleration.

The inner sleeve that supports the bushings is made from 6061-T6 aluminum, CNC'd to exacting specifications for a perfect fit.

Do NOT confuse these bushings with bushings produced outside of the US, with unknown material hardness. We have installed similar bushings produced by other companies which are simply too soft. In these cases, it would have been better if stock bushings were used since it allows too much movement of the rear trailing arm.

Squeak, Squeak. What was that noise?
Our US manufacturer has has offered us a silicon based formula, to also keep the urethane bushings quiet during use. Approximately 1.3 oz. of silicon is poured into the mold, which means that it is permanently impregnated into each bushing. This process costs more to produce, but we feel that it makes for a better product in the long run.

A common downside of the urethane bushings over stock rubber ones was that they would typically develop noise over time (or even right away). These noises were from a combination of the harder material, inadequate lubrication (or none at all), and the contact with the factory steel mounting hat rubbing against the bushing.

Professional Installation Required
Because the RTAB "console" removal is required, an alignment is recommended. For installation of the part itself, it is very straightforward, but requires some special tools. We recommend grease that has PTFE in it. A favorite in our shop is SUPERLUBE.

Fits the following vehicles:

All E36, including M3. Does NOT fit Z3 and 318ti.
All E46, including M3.
All Z4

PLEASE SPECIFY BLUE OR BLACK VERSION WHEN ORDERING.

Estimated Volumetric Shipping Weight : 10.00 Kg
