Ref: BM-ICP005

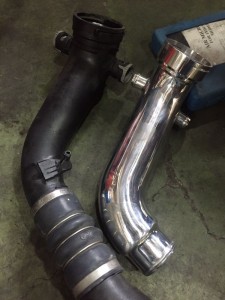

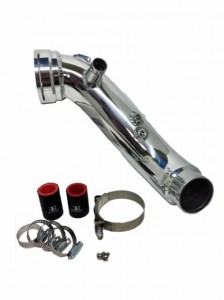

Key Features:

- Increase throttle response and decreases turbo lag.
- Compatible with factory diverter valves or aftermarket factory style diverter valves.
- Lightweight High Grade 6061 Aluminium Piping.
- Throttle body matched 3" piping.
- Retains factory style o-ring throttle body lock flange. Precision CNC machined throttle body flange ensures leak free connection to throttle body. Quick and easy connection and disconnection to throttle body. Ideal connection compared to the silicone hose and hose clamp connection found in all other aftermarket diverter valve upgrade pipes available in the marketplace.
- Precision CNC machined MAP sensor flange ensures leak free connection.
- Diverter Valve Charge Pipe features beaded ends and T-bolt clamps to prevent intercooler piping from coming off from boost.
- Factory diverter valve sound baffle, which causes turbulence in the factory pipe, is removed.
- Includes all hardware for complete installation.

Charge Pipe Finishes:

The Diverter Valve Charge Pipe is available in the same 2 finish options as our intercoolers. It is available in a mirror polish finish. It is also available in our Type III Hard Black Anodising for the guys that want the stealthy, factory look. An added benefit of the Type III Hard Black Anodising is that it hardens the aluminium piping and makes it more durable against accidental damage (like dropping the pipe).

Brush (or plain) finish is also available.

1/8" NPT Bungs (For Methanol or Nitrous Injectors):

With the popularity of methanol injection systems and nitrous systems, we have added the option of having a 1/8" NPT threaded bung (for methanol or nos injectors) welded to our diverter valve charge pipe. This allows quick and easy installation of methanol/nitrous injectors that are used in methanol injection systems and nitrous systems. You have the option of adding 1 or 2 injector bungs. Each 1/8" NPT bung will come with a plug so that you can run with or without the methanol injector. This is perfect for those who do not have the Methanol Injection yet but plan to do so in the future.

Please note that prices may vary according to exchange rate fluctuations.

Please refer to Evolution Racewerks Pricelist link below (MS Excel) for options/variations.


Estimated Volumetric Shipping Weight : 4.00 Kg



Click to Enlarge

Click to Enlarge

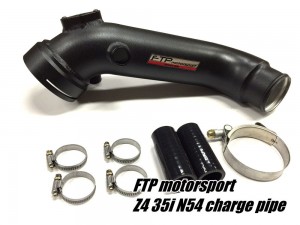

This product is suitable for the following model:

Z4 E89 (01/2008 — 09/2015)

Key Features:

- Direct OEM replacement.

- Precision CNC Machined MAP Sensor Flange, ensuring a leak free boost connection.

- 1/8" NPT Bungs (for methanol or nitrous injection or FTP intake temp sensor).

- Increasing throttle response and decreases turbo lag.

- Made from Lightweight High Grade 6061 Aluminium Piping.

- Throttle body matched 3" piping.

- Increased bore reduces turbulence and maximises flow.

- Polished internal surfaces.

- Retaining the factory style O-ring throttle body lock flange.

- Providing the quick and easy connection / disconnection to the throttle body.

- 3 Ply silicone joining pipes.

- Superior connections compared to the silicone hose and hose clamp connections used in many other diverter valve upgrade pipes available.

- The Diverter Valve Charge Pipe features beaded ends and T-bolt clamps to prevent inter-cooler piping from disconnecting when under boost.

- Optional Type III Hard Black Anodising (for unobtrusive and OEM look).

- Hard anodising helps improve durability of inter-cooler piping. Eliminating the bending, denting or collapsing issue of the OEM piping.

- Compatible with the factory electronic diverter valve.

- Includes all hardware for complete installation.

- Silicone Hump Hose included.






Estimated Volumetric Shipping Weight : 5.00 Kg



Click to Enlarge

WITHOUT ADAPTOR
Click to Enlarge

WITH APADTOR FITTED
Click to Enlarge

For BMW N55 engine 135i 335i 535i


This adaptor is installed between the boost sensor and mounting surface, allowing for a vacuum take off connection to be fitted to run a vacuum operated valve or boost gauge.


Estimated Volumetric Shipping Weight : 1.00 Kg



Click to Enlarge

Click to Enlarge

The FTP N54 PCV Valve is an upgraded replacement PCV valve for your N54 Engine and is strongly recommended for your high performance (or higher mileage).

The OEM plastic PCV valve does not hold pressure well even when brand new. This means is that when you are in boosted conditions, the "highly" pressurised PCV valve leaks turbocharged pressures into the crankcase. Depending on the condition of your PCV valve it could leak more than others. Also, if for some reason your valve cover is cracked, loose, or has a bad gasket, you also could develop a pressure leak either external to the engine or internal into the crankcase causing further pressurisation of the crankcase or other oil loss issues.

Estimated Volumetric Shipping Weight : 0.50 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

N54 CHARGEPIPE BLOW OFF VALVE

Suitable for E82, E88, E9x, E60, E61, Z4 using the N54 engine.
Chargepipe Blow Off Valve (BOV, 1M, 135i,335i,535i).

Replacing the factory diverter valves to this Blow off Valve type allows the car's engine to hold a more constant boost level while preventing unwanted pressure bleed off, and the stronger material construction of the charge pipe prevents cracking/deformation than can occur to the factory item with hard use and/or uprated power conversions. Specifically designed for the BMW E chassis N54 twinturbo charged engine.

Benefits and Features :
- Maintain better power throughout the RPM range
- Creating a unique 'woosh' sound
- Help release unwanted boost pressure
- Kit is pre-installed with 2.0 spring, and supplied with 1.9 and 2.2 alternative springs should you need to make adjustments later
- Complete kit including chargepipe, BOV, flange, silicone hose, couplers, clamps, and misc. hardware
- Suitable for all E chassis BMW with N54 3.0L engine - E82/88 135i, 1M Coupe, E60/61 535i, E90/91/92/93 335i/Xi, Z4 sDrive3.5i/3.5is
- Colour of silicone hose might change from time to time e.g. black, blue

NOTE : BOV also available seperately, listed separately in this section






Estimated Volumetric Shipping Weight : 5.00 Kg



Click to Enlarge

Click to Enlarge

N54 CHARGEPIPE BLOW OFF VALVE

Suitable for E82, E88, E9x, E60, E61, Z4 using the N54 engine.
Chargepipe Blow Off Valve (BOV, 1M, 135i,335i,535i).

Replacing the factory diverter valves to this Blow off Valve type allows the car's engine to hold a more constant boost level while preventing unwanted pressure bleed off. Specifically designed for the BMW E chassis N54 twinturbo charged engine.

Benefits and Features :
- Maintain better power throughout the RPM range
- Creating a unique 'woosh' sound
- Help release unwanted boost pressure
- Kit is pre-installed with 2.0 spring, and supplied with 1.9 and 2.2 alternative springs should you need to make adjustments later
- Suitable for all E chassis BMW with N54 3.0L engine - E82/88 135i, 1M Coupe, E60/61 535i, E90/91/92/93 335i/Xi, Z4 sDrive3.5i/3.5is
- Colour of silicone hose might change from time to time e.g. black, blue

NOTE : also available with uprated charge pipe kit, listed separately in this section






Estimated Volumetric Shipping Weight : 5.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Blow Off Valve 50 mm V-Band
(Please also see alternate listing for Nuke Blow Off Valve FOR 50 mm Hose Connection)

50 mm piston valve with the highest flow capacity available. When it is necessary to be able to rely on the installation and function.

Designed with a oversized 50 mm valve; we believe this is the largest valve available with the highest flow capacity. The body and all internal components are CNC-machined from 6082 aluminum alloy, anodized for a long lasting, corrosion-free appearance.

Designed and manufactured to handle extreme amounts of power with the same hallmark as all of our performance products.

The Blow off Valve comes with one quick connect pneufit fitting, with oversized 1/4 connection for quick and actuator response. If needed, barb fittings are available.

Spring Pressure Chart:
0,50 - 0,75 bar / 7,25 - 10,9 psi : Additional BLACK SPRING
0,35 - 0,50 bar / 5,07 - 7,25 psi : Stock / included BLUE SPRING
0,00 - 0,35 bar / 0,00 - 5,07 psi : Additional WHITE SPRING

** Measure engine vacuum at idle and with engine at operating temperature.

Available both with V-Band or silicon hose attachment. Nuke Performance unique V-Band design to enable perfect fitment.
The V-Band version is complete with clamp and welding flange.

Technical information :
• CNC manufactured from aluminium alloy 6082.
• The valve seal utilizes a Viton O-ring that is glued in place to prevent the possibility of sticking to the seat and pulling out.
• Also available with V-Band Connection.
• Delivered with 1x 1/4 G quick connect pneufit fitting for 6mm tubing.
• Delivered with "blue spring" : 0,35 - 0,50 bar / 5,07 - 7,25 psi.
• Springs are available in three different setups : White, Blue , Black.
• Laserengraved.

Measurements :
Height : 98 mm
Diameter : 88 mm
Weight : 399 g

Estimated Volumetric Shipping Weight : 2.00 Kg



Click to Enlarge

Click to Enlarge

Blow Off Valve 50 mm for hose connection
(Please also see alternate listing for Nuke Blow Off Valve for V band connection)

50 mm piston valve with the highest flow capacity available. When it is necessary to be able to rely on the installation and function.

Designed with a oversized 50 mm valve; we believe this is the largest valve available with the highest flow capacity. The body and all internal components are CNC-machined from 6082 aluminum alloy, anodized for a long lasting, corrosion-free appearance.

Designed and manufactured to handle extreme amounts of power with the same hallmark as all of our performance products.

The Blow off Valve comes with one quick connect pneufit fitting, with oversized 1/4 connection for quick and actuator response. If needed, barb fittings are available.

Spring Pressure Chart:
0,50 - 0,75 bar / 7,25 - 10,9 psi : Additional BLACK SPRING
0,35 - 0,50 bar / 5,07 - 7,25 psi : Stock / included BLUE SPRING
0,00 - 0,35 bar / 0,00 - 5,07 psi : Additional WHITE SPRING

** Measure engine vacuum at idle and with engine at operating temperature.

Available both with V-Band or silicon hose attachment. Nuke Performance unique V-Band design to enable perfect fitment.
The V-Band version is complete with clamp and welding flange.

Technical information :
• CNC manufactured from aluminium alloy 6082.
• The valve seal utilizes a Viton O-ring that is glued in place to prevent the possibility of sticking to the seat and pulling out.
• Also available with V-Band Connection.
• Delivered with 1x 1/4 G quick connect pneufit fitting for 6mm tubing.
• Delivered with "blue spring" : 0,35 - 0,50 bar / 5,07 - 7,25 psi.
• Springs are available in three different setups : White, Blue , Black.
• Laser engraved.

Measurements :
Height : 98 mm
Diameter : 88 mm
Weight : 399 g

Estimated Volumetric Shipping Weight : 2.00 Kg
