Click to Enlarge

Click to Enlarge

Universal Fuel Surge Tank with filter (1L)

Filter is made with Aluminium CNC.

High quality TIG Welding.



Click to Enlarge

Click to Enlarge

Universal Fuel Surge Tank with filter (3L)

Filter is made with Aluminium CNC.

High quality TIG Welding.



Click to Enlarge

Universal Oil Catch Tank with filter



Click to Enlarge

Universal Oil Catch Tank with filter (0.5L)

Colour options:
- Black/Silver



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Universal Oil catch Tank Without Filter



Click to Enlarge

Click to Enlarge

Click to Enlarge

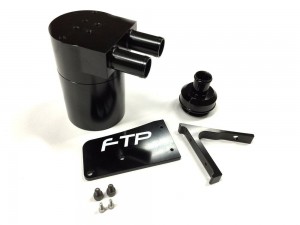

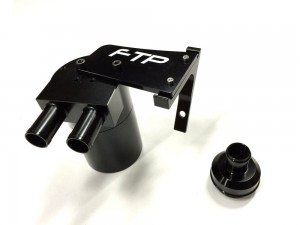

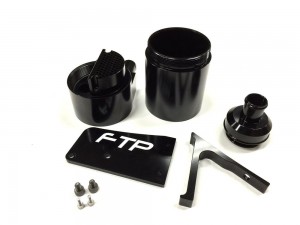

For F2X 125i 220i F3X 320i 328i 420i 428i 320GT 420GC 428GC

Features:

- Keeps oil out of the Air Intake System

- Increases air intake efficiency

- Promotes engine longevity

- Non-clogging air/oil separation

- Free Flow No Restriction design

- Large inlet/outlet. No tapering down

- Unobtrusive mounting on cooler side of the engine

- Anodised back lightweight aluminium



Estimated Volumetric Shipping Weight : 3.00 Kg



Click to Enlarge

Click to Enlarge

Features:

- Increases air intake efficiency

- Promotes engine longevity

- Non-clogging air/oil separation

- Free Flow No Restriction design

- Large inlet/outlet. No tapering down

- Unobtrusive mounting on cooler side of the engine

- Anodised back lightweight aluminium



** PLEASE SPECIFY EXACT VEHICLE MODEL WHEN ORDERING**

Estimated Volumetric Shipping Weight : 2.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge


Click to Enlarge

Universal Dual inlet Oil Catch Can, AVAILABLE IN 0.5 OR 1.0 LITRE CAPACITY AT SAME PRICE.
(Please see alternate listing for 0.75 Litre version and also catch can drain out kit)

The 1,0 litre version exceeds international regulations demanding 1 quart internal volume.

Dual 7/8" AN-10 inlet, dual filtration breather for competition usage as well as for street and tuning usage.

Equipped with 100 micron filter disc, prevents particles from escaping the catch can, filter disc is used both when atmospheric and recirculating setup is used.

• Dual AN-10 inlet ports, comes with plug for single or dual inlet setup
• Stainless Steel filtration media
• 100micron Stainless Steel filter disc
• All needed fittings are included, both for atmospheric and recirculating setup
• Anodized dip stick for easy reading of level
• 1/4 G drainage outlet for fast and easy drainage

The unique Internal Billet Filtration Unit in combination with our recessed filter disc gives you a extremely rigorous filtering of your crankcase gasses.
The “IBFU” includes stainless steel filtration media that maximizes condensation of the contaminations within the gasses without any or minimum flow loss.

The Dual Inlet Competition Catch Can gives you maximum filtration, with a 100mic filter disc with its own surge protection mounted to the outlet port making this the first Catch Can that can be used both for atmospheric and recirculating setup without adding an external filter on top. All fittings included for both setups.

The over dimensioned chamber without any additional baffling lets the gasses to flow free within the catch can. The Competition Catch Can comes in two sizes, 0,5 liter and 1,0 liter (1,06 quart).

Stainless steel bracket, infinitely rotatable at 360 degrees.

Use in combination with our drainage kit including fittings, peacock valve and hose to make drainage fast and easy.

Technical information :
• CNC macufactured from aluminium alloy 6082.
• Delivered with three 7/8 AN-10 fittings, one 7/8 plug, one outlet fitting for atmospheric use and 1/4 drainage plug.
• Anodized finish for long lasting function and corrosion free appearance.
• 100 micron stainless steel cleanable filter disc and cleanable stainless steel filtration media.
• Meets dictated regulations including SCCA, NASA, Formula D.
• Laserengraved.

Measurements :
0,5 liter Catch Can
Height : 159,5 mm
Width : 89 mm
Depth : 108,5 mm
Weight : 1200 g

1,0 liter Catch Can
Height : 239,5 mm
Width : 89 mm
Depth : 108,5 mm
Weight : 1400 g
* All measurements excluding the supplied or optional fittings.

PLEASE SPECIFY IF YOU WISH 0.5 OR 1.0 LITRE CAPACITY CAN, SAME PRICE EITHER ONE.



Estimated Volumetric Shipping Weight : 2.00 Kg
