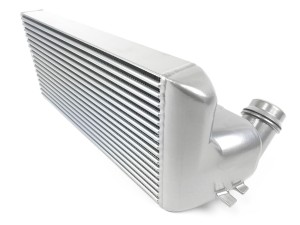

Uprated Intercooler for F87 M2

* Innovative 2-core in-series system.
- Front full size core has 17 cooling tubes versus OEM 15 tubes
- Secondary in-series backside cooler has an additional 6 rows of cooling
- Made with CSF’s AC condenser technology using a 1-row super-high pressure 26mm multi-channel microtube.
- High-density multi-louvered fin design for maximum surface area contact.
-“Drop-in fit” requiring no modifications to install. Accepts all attaching OEM components including oil-line connections, mounting brackets, and shroud/ducting
* World’s 1st and only true “plug-and-play” upgraded engine oil cooler for the BMW N55 engine in the BMW F87 M2 (2016+)
* Track tested in 103? (115 ? heat index) – max oil temperature achieved 240?.
* This is a reduction from 275/280? track oil temperatures (limp mode) when testing with the upgraded CSF cooler on the vehicle versus the OEM cooler.
* Need additional ½ quart for proper fill-up during installation (OEM cooler is 7 quarts. CSF’s upgrade Race-Spec M2 oil cooler required ~7.5 quarts to fill up properly.
* Rounded bar and plate design for improved airflow and cooling
* Hugely improved volume vs. stock
* 1:1 OE replacement, direct fit!

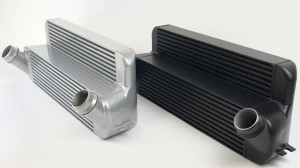

* Available in Black OR Silver, please specify choice when ordering


Estimated Volumetric Shipping Weight : 4.00 Kg



Click to Enlarge

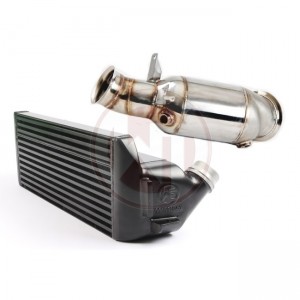

Ref: 700001050

The BMW F-series N55 EVO 2 Performance Package with cat 07/13+ features the items below and is suitable for the following vehicles:

- BMW M135i(x) F20 / F21 model 07/2013 -
- BMW M235i(x) F22
- BMW M2 F87
- BMW M2 F87 272KW/370PS (2016+)
- BMW 335i(x) F30 / F31 / F34 model 07/2013 -
- BMW 435i(x) F32 / F36 model 07/2013 -

BMW F20 F30 EVO2 Performance Intercooler Kit #200001066

The high-performance intercooler has the following dimensions
EVO2 - 520mm x215mm x145mm/stepped 13,840cm³
OEM - 510mm x130mm x110mm, 7,293cm³

Featuring ~85% larger surface area and 90% more volume than the OEM Intercooler.
The Performance Core provides excellent cooling properties.
The end tanks of the intercooler are constructed using free form cast aluminium optimised with flow analysis in Wagner Tuning's CAD systems.
Plug & Play Installation using the stock plumbing, no cutting or bumper removal required.

BMW F-Series N55 Catless Downpipe Kit 7/13+ #500001017

Replacement for OEM BMW Part #18328602882

Designed in CAD and then constructed using 1.4301 (SS304) stainless steel.
High flow decat* reduces the thermal load on the turbocharger.
Significantly less back pressure resulting in increased torque and power.
Perfect fit as a direct replacement for the OEM unit.
2 Lambda probe connections.
Connection diameter 118mm

*ECU will need to be coded to avoid engine management light errors.

Estimated Volumetric Shipping Weight : 15.00 Kg



Click to Enlarge

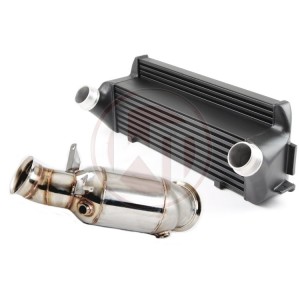

Ref: 700001051

The competition package for the BMW F-serie consists of the intercooler upgrade kit, the N55 downpipe kit with 200 CPI racing catalyst and fits the following vehicles:

- BMW M135i(x) F20 / F21 model 07/2013 -
- BMW M235i(x) F22 / F23
- BMW M2 F87
- BMW M2 F87 272KW/370PS (2016+)
- BMW 335i(x) F30 / F31 / F34 model 07/2013 -
- BMW 435i(x) F32 / F36 model 07/2013 -

Intercooler Upgrade Kit 200001071

The high-performance intercooler has the following dimensions (520mm x215mm x145mm /stepped 13.840cm³ / Stock IC 510mm x130mm x110mm, 7.293cm³)
Approx. 85% bigger surface and 90% more volume over Stock Intercooler. The competition core provides excellent cooling properties and weight is also very low (8,6kg).
The end tanks of the intercooler are made of cast aluminium and have been optimised with the help of flow analysis in the CAD system. Plug & Play Installation using the stock pluming, no cutting or bumper removal required.

Packing List:
- 1 Intercooler
- 1 Mounting material
- 1 Installation instruction

Downpipe-Kit N55 with 200CPI catalyst 500001013

- Replacement for OEM BMW Part# 18328602882
- Made out of high quality stainless steel 1.4301 (SS304)
- 100% perfect fit, replace OEM
- Less thermal load on the turbocharger
- More power by reducing back pressure
- Significantly more torque
- 200cpi Catalytic Converter
- Connection diameter 118mm

Estimated Volumetric Shipping Weight : 15.00 Kg



Click to Enlarge

Ref: 700001052

The competition package for the BMW F-series consists of the intercooler upgrade kit, the N55 downpipe kit without catalyst and fits the following vehicles:

- BMW M135i(x) F20 / F21 model 07/2013 -
- BMW M235i(x) F22 / F23
- BMW M2 F87
- BMW M2 F87 272KW/370PS (2016+)
- BMW 335i(x) F30 / F31 / F34 model 07/2013 -
- BMW 435i(x) F32 / F33 model 07/2013 -


Intercooler Upgrade Kit 200001071

The high-performance intercooler has the following dimensions (520mm x215mm x145mm /stepped 13.840cm³ / Stock IC 510mm x130mm x110mm, 7.293cm³)
Approx. 85% bigger surface and 90% more volume over Stock Intercooler. The competition core provides excellent cooling properties and weight is also very low (8,6kg).
The end tanks of the intercooler are made of cast aluminium and have been optimised with the help of flow analysis in the CAD system. Plug & Play Installation using the stock plumbing, no cutting or bumper removal required.

Packing List:
- 1 Intercooler
- 1 Mounting material
- 1 Installation instruction

Downpipe-Kit N55 catless 500001017

- Replacement for OEM BMW Part# 18328602882
- Made out of high quality stainless steel 1.4301 (SS304)
- 100% perfect fit, replace OEM
- Less thermal load on the turbocharger
- More power by reducing back pressure
- Significantly more torque
- Without Catalytic Converter
- Connection diameter 118mm

Estimated Volumetric Shipping Weight : 15.00 Kg
