Design
For this application we have opted to do a complete redesign of the entire airbox.
The factory intake elbow reduces in size considerably from the plenum opening to the airbox. Increasing the size or smoothing the inlet elbow has been the norm for most intakes with little to no effect in power. The effect on airflow is minimal even if there is an increase in size after going through the restrictive and small area through the OEM airbox.

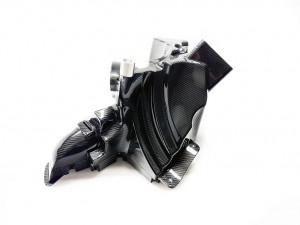

Our design strategy was to create an inlet tube which kept the cross sectional area of the plenum opening consistent and enlarged it. In order to accomplish this we needed to redesign the complete airbox to allow such a large tube to pass through it.

The end result is a inlet tube which is significantly larger in volume and cross sectional area which slowly increases in size as it goes to the large surface area air filter. The plenum can now take in air to it's maximum capacity as the cross sectional area remains the same and increases.

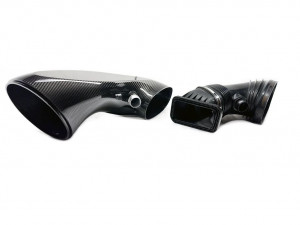

The below images show the dramatic increase in size and how much larger the opening is to the air filter in comparison to the oem intake system.

Dyno Test
Dyno tests were performed under strict controlled conditions on an independent Dyno Dynamics machine in order to show a true and realistic result.
The test car was a 100% stock 2012 DCT with 62,000 miles.

A healthy and genuine increase of 10-12hp | 8-10 lb.ft from 6000-8300rpm

The results shown are the highest stock result vs the highest result with the intake. This can be clearly seen from the shape of the stock dyno run as it's shape is smooth and the power does not fall off at the high rpm. The stock car makes it's peak power at the factory 8300rpm.
Many companies will use stock runs which are early runs in the session with high IAT's which result in the ECU retarding ignition timing. This results in a graph which does not have a natural shape and flattens off at high rpm.
More importantly, the upgraded airbox dyno graph does not have a torque curve which has a consistent gain through the rpm range. These types of dyno results suggest a correction factor has been used to show a false gain.
The test performed here shows a realistic result as the torque curve is almost identical at low rpm and only begins to gain power after 4000rpm and especially after 6000rpm where the air demand is higher.

With modified cars with exhausts which delete the highly restrictive primary catalytic converters, the results will be similar or higher.

Air Filtration

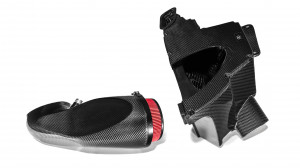

Within the beautifully shaped carbon shaped enclosures sits our bespoke short stack high surface area filter larger than any cone filter design currently on offer on the market with a huge opening of 170mm (6 3/4") and is designed to take full advantage of the intake tubes by altering the direction of the airflow towards the outer walls. By placing the air filters in front of the inlet tube we achieve the largest velocity stack ever seen for the S65 and which also has the best laminar flow. It is important to note that we have painstakingly opted for the largest possible air filter for a various number of reasons. Not only does a larger air filter allow for more air flow and therefore power but it also does not block up for longer and continues to be efficient at it's main purpose which is to filter the air of harmful elements.

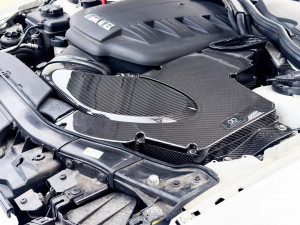

The air filters are completely encapsulated within the air filter housing rejecting the all of the engine bay hot air and with the angle of the front inlet the air circulates around the air filter giving an even distribution of outside cool air.

Air Intake Temperatures | Heat Soak
The result is a system which matches the factory intake system for inlet temperatures. In addition the system changes the air flow characteristics for a smoother delivery and allows more air to enter the engine more easily.

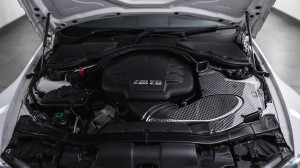

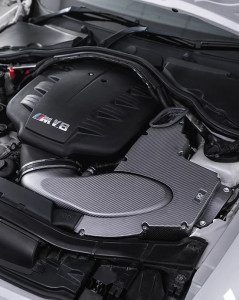

This fully developed and intelligently designed intake system is not just something that looks good in the engine bay but does an impeccible job as an air smoothing device, increasing air available and adding a race car induction sound.??

Specifications

??Pre-preg 3-piece autoclave carbon fiber construction. ?Sealed design for optimal air temperature efficiency
Available in Gloss or Matt clear coated finish
Improved power, throttle response and induction noise
Plug & Play fitment ??

Components

??-Venturi Inlet Tube
-Airbox
-Airbox Lid
-Silicone Couplers
-Hose Clamps



Estimated Volumetric Shipping Weight : 6.00 Kg
