Crest Automotive Tuning - C) CHASSIS, BRAKES, SUSPENSION & STEERING UPGRADES

Product Code: bmmrwm9xe8xrarm

Click to Enlarge

Genuine BMW MOTORSPORT parts - Made in Germany

As the BMW community has found out, the new 1 and 3 Series pack a lot of power, and can easily be increased with aftermarket help to levels above the M3! With that in consideration, there is a need for serious suspension performance to match. This rear suspension conversion kit converts your rear suspension members to ///Motorsport specification for decreased deflection, better chassis control, and stronger joints and bushings. ///Motorsport arms are cast alloy, cutting weight from the original stamp steel components. ///M joints are considerably stronger than original for increased longevity and more power to the ground!

Our kit incorporates all the components needed including:

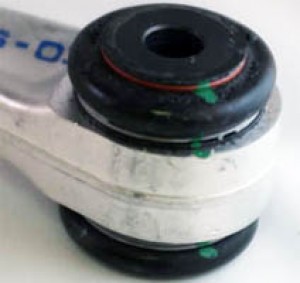

Left and right ///Motorsport alloy guide rods with heavy duty bushings and joints

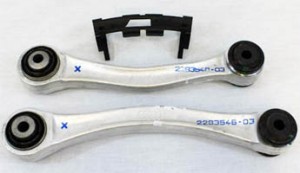

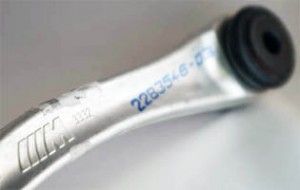

Left and right ///Motorsport alloy rear upper links with heavy duty bushings and joints
ABS sensor wiring brackets

Applications:

All E9X 3 Series
All E82/8 1 Series cars
All 4 arms arm included in kit for a complete package.

CALL US FOR VERY BEST PRICES

Estimated Volumetric Shipping Weight : 8.00 Kg

Product Code: bmmrwm9xe8xarm

Click to Enlarge

Genuine BMW MOTORSPORT parts - Made in Germany

This highly suggested, simple installation will reduce understeer and increase steering feedback for improved performance for any* E9X 3 Series or E8X 1 Series.

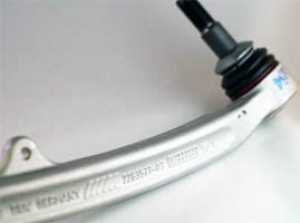

This front wishbone conversion set replaces your stock front suspension wishbone arms to Genuine BMW Motorsport specification for improved negative camber, improved steering feedback, with stronger solid joints. The negative camber is increased by approximately .75 degrees for better turn-in and chassis balance.

These upgraded wishbones can be used in conjunction with the stock, non-M suspension on both E9X and E8X cars. Kit includes left and right wishbone arms and optional** link for headlight leveling system. Motorsport tension (thrust) arms are also available as an option. This arm set includes solid rubber motorsport bushings and larger ball joints for added steering feedback and strength.

Applications:

-All E9X 3 Series non-Xi cars
-All E8X 1 Series cars

PLEASE ADVISE IF YOUR CAR HAS XENON HEADLAMPS WHEN ORDERING.

CALL US FOR VERY BEST PRICES

Estimated Volumetric Shipping Weight : 8.00 Kg

Click to Enlarge

* THIS LISTING IS FOR THE STANDARD ROD END VERSION *

RE part number re.e9x.cam

For those drivers looking for the adjustability in the rear of their E8X/E9Xs, we are proud to offer you our Adjustable Rear Camber Link Set.

These replace the wishbone and guide rod links in the factory suspension which have rubber bushings and limited adjustability.

These rear links feature 6061-T6 anodized aluminum links and feature rod ends with carbon fiber lined races. The 303 Stainless rod end inserts offer strength and corrosion protection for long lasting performance.

For dedicated race cars, we offer upgraded high strength rod ends at additional cost.

Please now refer to Variations section by using the red link button at top right of the page to access info on different options / models.

Recommended for those who drive their vehicles at the track.

Professional installation recommended.

Includes set of four (4) links.

An alignment is required after installation.

These are a direct bolt in for the following vehicles:

•All E8X 1-Series, including 1 M Coupe
•All E9X 3-Series, including M3

Estimated Volumetric Shipping Weight : 10.00 Kg

Product Code: bmwlink

Click to Enlarge

rubber protective “boots”
Click to Enlarge

Click to Enlarge

REF: BMWLINK

Adjustable front anti roll bar drop link pair for most BMW models.

Ground Control exclusive machined billet stainless steel tapered adapters press into stock holes for a precise fit.

Please do not compare to other kits that ask you to use a 3/8 rod-end into the BMW 10mm hole, it just does not work. That is a loose fit that only gets worse, especially when driven hard.

Adjustable length 6061 anodized rod, with wrench flats and jam nuts. 3 piece proprietary rod ends.

**NOTE: PLEASE ADVISE WHAT SUSPENSION AND ANTI ROLL BARS YOU ARE USING AND WHICH VEHICLE MODEL

Fitting Time: 1.00 hour.
Estimated Volumetric Shipping Weight : 5.00 Kg

HOW TO INSTALLL DROP LINKS PROPERLY

Product Code: gce92link

Click to Enlarge

REF: E92LINK-1

• Adjustable end link for e9x front sway bars.
• Ground Control exclusive machined billet stainless steel tapered adapters press into stock holes for a precise fit.
• Please do not compare to other kits that ask you to use a 3/8 rod-end into the BMW 10mm hole, it just does not work. That is a loose fit that only gets worse, especially when driven hard.
• Adjustable length 6061 anodized rod, with wrench flats and jam nuts. 3 piece proprietary rod ends.
• Fits M3 and non-M3 (please advise your model as they differ slightly)

**PLEASE ADVISE WHAT ANTI ROLL BARS AND STRUTS YOU ARE USING WHEN ORDERING

Estimated Volumetric Shipping Weight : 5.00 Kg

Product Code: gce9xarmset

Click to Enlarge

Set of 6 arms, 2 x toe arms, 2 x guide arms and 2 x wishbone arms.
Other pairs of arms are listed separately in this section.

• Replaces the stock rear wishbone and guide arms, offers simple and easy adjustment.
• Machined steel adapters press into stock mounting points for precision fit.
• Uses a 6061 anodized rod with pinch collars, allowing for easy adjustment of rod end.
• Steel bushings are protected by rubber dust boots.

Please specify exact vehicle model when ordering.

Estimated Volumetric Shipping Weight : 5.00 Kg

Product Code: gce9xguidearm

Click to Enlarge

• Offers simple and easy adjustment of rear suspension.
• Machined steel adapters press into stock mounting points for precision fit.
• Uses a 6061 anodized rod with pinch collars, allowing for easy adjustment of rod end.
• Steel bushings are protected by rubber dust boots.

Please specify exact model when ordering.

Estimated Volumetric Shipping Weight : 5.00 Kg

Product Code: gce9xtoearm-1

Click to Enlarge

Product Code: gce9xwishbonarm

Click to Enlarge

Product Code: gcbmwlinkrear

Click to Enlarge

REF: BMWLINKREAR-1

Adjustable end link for many BMW rear sway bars.

Ground Control exclusive machined billet stainless steel tapered adapters press into stock holes for a precise fit.

Please do not compare to other kits that ask you to use a 3/8 rod-end into the BMW 10mm hole, it just does not work. That is a loose fit that only gets worse, especially when driven hard.

Does NOT fit stock E30/E30M3, E46/E46M3 or E36/E36M3 bars.
Fits many aftermarket bars, but it is the customers responsibility to confirm. Available in stock size (10mm) or 3/8 size. Do not attempt to use 3/8 bolt into a 10mm hole.

**PLEASE ADVISE EXACT MODEL AND SUSPENSION SET UP WHEN ORDERING.

Estimated Volumetric Shipping Weight : 4.00 Kg

Click to Enlarge

Advantages over Vorshlagg Plates
Click to Enlarge

Ground control offer an excellent choice of adjustable camber and camber / castor version front top plates.

Street version plates include rubber cushion pad to help isolate from vibrations, race plates do not have rubber cushion and offer castor as well as camber adjustment.

PLEASE NOW REFER TO VARIATIONS SECTION (USE RED BUTTON AT TOP RIGHT OF THIS LISTING) TO SEE THE VARIOUS OPTIONS FOR YOUR SPECIFIC MODEL. FEEL FREE TO CALL US WITH ANY QUESTIONS.

Estimated Volumetric Shipping Weight : 10.00 Kg

Click to Enlarge

uni ball joints
Click to Enlarge

Originally designed for race use in the German DTM series this awesome front axle replacement suspension linkage system offers improved road holding, handling and chassis customisation due to it's lightweight and superior range and ease of adjustment of all geometry settings.

Two versions are available:

A: Lowers by 30 mm (this page lists version A ,please refer to Variations section by using red button at top right for version B)
B: Lowers by 30 mm + , comes with special front axle carrier (see variations section)

Please call for further details.

Product Code: pwcamg

Click to Enlarge

The PowerAlign Magnetic Camber Gauge measures the Camber angle on the wheel hub or brake disc and allows on-car adjustment to ensure correct wheel alignment. This is a useful tool for setting Camber angles after dismantling and re-assembling of the suspension and is an ideal track day companion.

This easy to use magnetic gauge attaches to the hub or brake disc and graduates +/- 6 degrees and comes supplied in a durable storage case.

Save on expensive repair costs and down time by using the PowerAlign Magnetic Camber Gauge.

Estimated Volumetric Shipping Weight : 1.00 Kg

Product Code: ree9xsp

Click to Enlarge

ROGUE ENGINEERING E9X E8X REAR HEIGHT ADJUSTERS (PAIR)

RE part number re.e9x.sp

These adjustable height rear spring platforms, designed to work with 60mm inner diameter coilover rear springs mounted in the stock spring location at the rear of a BMW E8x (1 series) or E9x (3 and M series). The thread used is self locking once any load is applied.

Made from 6061-T6 aluminum, these are anodized to prevent corrosion. These can be adjusted from a minimum of 0.5" thick to a maximum of 2.75" thick. These can be adjusted independently of each other and is great for corner balancing of your BMW.

Designed to ride on the stop of the spring in an E8X/E9X. The locating stub fits in the factory location and replaces the bulky factory locating stub/hat, which inhibits ride height adjustment with other similar rear ride height adjusters.

Sold as a pair

Estimated Volumetric Shipping Weight : 3.00 Kg

Product Code: ruffcpltvers1

Version 1
Click to Enlarge

Front adjustable camber plates - version 1

- Ball-Joint covered in Urethane PU, new design.
- 360" perfect vibration absorption.
- Better Front Suspension Control and handling
- Can extend the life for front suspension system
- No Noise Ball-Joint.

Available for the following vehicles, PLEASE SPECIFY YOUR EXACT VEHICLE MODEL WHEN ORDERING :

E36, E36(M3), Z3
E28, E30, E30(M3), E32, E34
E46, E87, E90, E91, E92, Z4
E38, E39, E60, E63

Please see for Version 2
RUFF FRONT CAMBER MOUNTS VERSION 2

Estimated Volumetric Shipping Weight : 9.00 Kg

Product Code: ruffcpltvers2

Version 2
Click to Enlarge

Front adjustable camber plates - version 2

Version 2 offers greater adjustment angle range

- Ball-Joint covered in Urethane PU, new design.
- 360" perfect vibration absorption.
- Better Front Suspension Control and handling
- Can extend the life for front suspension system
- No Noise Ball-Joint.

Available for the following vehicles, PLEASE SPECIFY YOUR EXACT VEHICLE MODEL WHEN ORDERING :

E36, E36(M3), Z3
E28, E30, E30(M3), E32, E34
E46, E87, E90, E91, E92, Z4
E38, E39, E60, E63

Please see for Version 1
RUFF FRONT CAMBER MOUNTS VERSION 1

Estimated Volumetric Shipping Weight : 9.00 Kg

Product Code: ruffrcae8x9x

Click to Enlarge

SUITABLE FOR : E82, E87, E90, E91, E92, E93

- High quality structure and Ball-Joint design.
- RUFF exclusive design Dust Cover.
- High-Strength and High quality Steel-Chromium-Molybdenum (SCM) material.
- Adjustment is simple and quick using the center turnbuckle.
- Designed for both performance and racing applications.

Estimated Volumetric Shipping Weight : 10.00 Kg

Product Code: vmadjdl

Click to Enlarge

Probably the most overlooked suspension component in the performance world is the sway bar / anti roll bar end-link.
This simple component attaches the sway bar to each end of the suspension so the sway bar can do its job; promoting flat cornering of the vehicle in a turn.
This simple component can drastically hurt your car's performance if not optimized, especially in a BMW where high sway bar rates [and therefore high stresses] are common.

A sway bar with fixed length links can induce a load into any two cross-corners of your vehicle. The ability to neutralize the sway bar in your suspension system is a great advantage to baseline, balance, and refines your vehicle's handling characteristics. These links have achieved this by creating adapters that integrate current sway bar link technology to the traditional sway bar architecture. A worth while upgrade for any modified BMW.

Common issues with incorrect type or set up of drop links :

-Have you ever had a sway bar link bend..?
-Do you know if you are having suspension bind due to insufficient sway bar end link articulation (or simply poor design, bad bushing, etc)..?
-Have you ever had a sway-bar link fail at the welded joint between the ball and the link..?
-Do you want to properly corner weight your car..?

All these common issues that your vehicle may have had are addressed with this set.

These sway bar end links are the best solution, and unlike many others on the market these INCLUDE WEATHERPROOF "BOOTS" to help prevent the early demise of "open" type of drop link joints through corrosion / clogging .

Eliminate sway bar pre-load that adversely affects handling, strengthen your suspension, and truly optimize your setup with this strong Adjustable Sway Bar Link Set!... With no penalty, these links are quiet, just like OE links.

Put Simply: no matter at what ride height, stock or otherwise, OEM sway bar links are a weak link (literally) and add preload to your suspension. These adjustable links are superior to all other designs and unlike the upgraded units that may have come in your aftermarket sway bar kit, these have no polyurethane to squeak, tear, or blow out on the track.
These links feature a THK ball socket that is pre-lubricated, and sealed for durability and prolonged life. THK is an OE manufacturer for Porsche, Nissan, Honda, Ford, GM, Toyota and even BMW.

Ford In developing the new OEM suspension for their 2010 GT500, found these links made such a difference the factory test drivers believed the prototype sway bars had been re designed and they became OE equipment of this model. Thats an improvement!

The Benefits of This Design Over the OEM Sway Bar Links are:
•Heavy Duty Ball Socket Joint has excellent strength and life, never require servicing
•Large Diameter Link Rod to Resist Bending
•Designed for he needs of Racing and track use, and a Perfect Upgrade/ Replacement for Street Use!
•No Welded Joint to Fail
•Adjustable Design to Enable Corner Weighing and Swaybar Pre-load Adjustment and Yet Still Meet Racing Class Requirements
•High Mis-Alignment Design to Prevent Suspension Coil Bind (even better than spherical joints!)
•Joints are pre-greased and have a water-tight seal.
•Precision joint allows smooth operation.

WHEN ORDERING PLEASE SELECT REQUIRED PRIMARY LENGTH OF LINKS REQUIRED, 60,75, 85 OR 90 MM (See below to help you choose)
Tech Tip:
Measurements below are at stock ride height.
Longer or shorter length may vary accordingly to your ride height, geometry, clearance issues under the chassis around intercoolers/ oil coolers, body components, etc.
A good start is to order a longer length if your car is more than 1.5" lower than stock Here are some stock lengths, the Powergrid pieces are adjustable to fit the closest size application:

•E30 (M3), E24, E28, E34: front 60mm
•E36 M3: Front 60mm
•E39: Front 60mm (Stock Height. We recommend using 75mm if Lowered)
•E46 M3: Front 75mm
•E90: Front 60mm
•E60: Front 90mm

Note:
-End links do not fit non-M3 E36 (except 325i/is produced before 06/1992)
-Does not fit E30 rear, call or email for our kit for the E30 rear.

NOTE: PLEASE ADVISE WHAT SUSPENSION AND ANTI ROLL BARS YOU ARE USING

Estimated Volumetric Shipping Weight : 2.00 Kg
