Features

- Increased Flow
- Direct OEM Replacement
- Calibre increase
- 3-Ply Silicon Couplers
- Bung for water injection
- Never blow up again

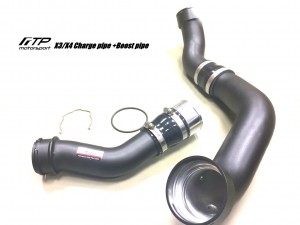

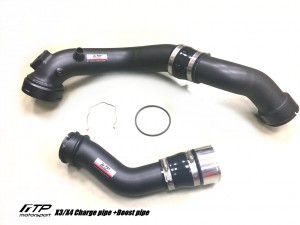

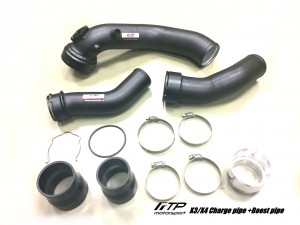

For maximum effect, The FTP Charge Pipe both increases flow and improves the reliability of your AWD BMW N55 engine BMW.

- The aluminum pipe replaces the brittle factory plastic pipe which can fail under increased boost pressure.

- The increased piping size helps to reduce turbulence and maximise flow into the engine.

Part is suitable for the following N55 vehicles:

1. F25 X3 35i
2. F26 X4 35i, M40i

Estimated Volumetric Shipping Weight : 6.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Features :

- Increased Flow
- Direct OEM Replacement
- Calibre increase
- 3-Ply Silicon Couplers
- Bung for water injection
- Never blow up again

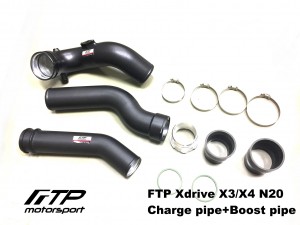

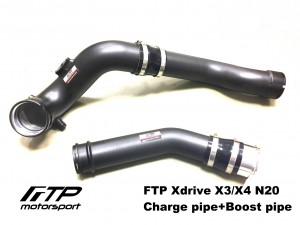

For maximum effect, The FTP Charge Pipe both increases flow and improves the reliability of your AWD BMW N20 engine BMW.

- The aluminum pipe replaces the brittle factory plastic pipe which can fail under increased boost pressure.

- The increased piping size helps to reduce turbulence and maximise flow into the engine.

This part is suitable for the following N20 vehicles:

1. F25 X3 20i 28i
2. F26 X4 20i 28i

Estimated Volumetric Shipping Weight : 6.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Features:
- OEM Fitment
- Increase Calibre and Flow
- Increase Throttle Response
- Decrease Turbo Lag
- 3-Ply Reinforced Silicone Couplers
- Bung for Water Injection
- Smooth Electroplating Inside (optional, customized color, need to wait 2~3 weeks)

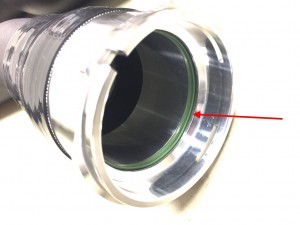

In order to have better air tightness and stability FTP developed the Reinforced Seal for full intercooler pipe system


Suitable for the following vehicles:

120d:
- 1' F20 (07/2010 — 02/2015)
- 1' F20 LCI (10/2014 — 05/2015)
- 1' F21 (07/2010 — 02/2015)
- 1' F21 LCI (10/2014 — 05/2015)

220d:
- 2' F22 (10/2012 — 06/2015)

318d ,320d:
- 3' F30 (03/2011 — 07/2015)
- 3' F30 LCI (12/2014 — 03/2016)
- 3' F31 (07/2011 — 07/2015)
- 3' F31 LCI (06/2015 — 02/2016)
- 3' F34 GT (07/2012 — 06/2015)

420d:
- 4' F32 (11/2012 — 02/2015)
- 4' F33 (03/2013 — 06/2015)
- 4' F36 Gran Coupé (07/2013 — 06/2015)

X3 20d ,18d
- X3 F25 (06/2009 — 06/2017)

Estimated Volumetric Shipping Weight : 6.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Blow Off Valve 50 mm V-Band
(Please also see alternate listing for Nuke Blow Off Valve FOR 50 mm Hose Connection)

50 mm piston valve with the highest flow capacity available. When it is necessary to be able to rely on the installation and function.

Designed with a oversized 50 mm valve; we believe this is the largest valve available with the highest flow capacity. The body and all internal components are CNC-machined from 6082 aluminum alloy, anodized for a long lasting, corrosion-free appearance.

Designed and manufactured to handle extreme amounts of power with the same hallmark as all of our performance products.

The Blow off Valve comes with one quick connect pneufit fitting, with oversized 1/4 connection for quick and actuator response. If needed, barb fittings are available.

Spring Pressure Chart:
0,50 - 0,75 bar / 7,25 - 10,9 psi : Additional BLACK SPRING
0,35 - 0,50 bar / 5,07 - 7,25 psi : Stock / included BLUE SPRING
0,00 - 0,35 bar / 0,00 - 5,07 psi : Additional WHITE SPRING

** Measure engine vacuum at idle and with engine at operating temperature.

Available both with V-Band or silicon hose attachment. Nuke Performance unique V-Band design to enable perfect fitment.
The V-Band version is complete with clamp and welding flange.

Technical information :
• CNC manufactured from aluminium alloy 6082.
• The valve seal utilizes a Viton O-ring that is glued in place to prevent the possibility of sticking to the seat and pulling out.
• Also available with V-Band Connection.
• Delivered with 1x 1/4 G quick connect pneufit fitting for 6mm tubing.
• Delivered with "blue spring" : 0,35 - 0,50 bar / 5,07 - 7,25 psi.
• Springs are available in three different setups : White, Blue , Black.
• Laserengraved.

Measurements :
Height : 98 mm
Diameter : 88 mm
Weight : 399 g

Estimated Volumetric Shipping Weight : 2.00 Kg



Click to Enlarge

Click to Enlarge

Blow Off Valve 50 mm for hose connection
(Please also see alternate listing for Nuke Blow Off Valve for V band connection)

50 mm piston valve with the highest flow capacity available. When it is necessary to be able to rely on the installation and function.

Designed with a oversized 50 mm valve; we believe this is the largest valve available with the highest flow capacity. The body and all internal components are CNC-machined from 6082 aluminum alloy, anodized for a long lasting, corrosion-free appearance.

Designed and manufactured to handle extreme amounts of power with the same hallmark as all of our performance products.

The Blow off Valve comes with one quick connect pneufit fitting, with oversized 1/4 connection for quick and actuator response. If needed, barb fittings are available.

Spring Pressure Chart:
0,50 - 0,75 bar / 7,25 - 10,9 psi : Additional BLACK SPRING
0,35 - 0,50 bar / 5,07 - 7,25 psi : Stock / included BLUE SPRING
0,00 - 0,35 bar / 0,00 - 5,07 psi : Additional WHITE SPRING

** Measure engine vacuum at idle and with engine at operating temperature.

Available both with V-Band or silicon hose attachment. Nuke Performance unique V-Band design to enable perfect fitment.
The V-Band version is complete with clamp and welding flange.

Technical information :
• CNC manufactured from aluminium alloy 6082.
• The valve seal utilizes a Viton O-ring that is glued in place to prevent the possibility of sticking to the seat and pulling out.
• Also available with V-Band Connection.
• Delivered with 1x 1/4 G quick connect pneufit fitting for 6mm tubing.
• Delivered with "blue spring" : 0,35 - 0,50 bar / 5,07 - 7,25 psi.
• Springs are available in three different setups : White, Blue , Black.
• Laser engraved.

Measurements :
Height : 98 mm
Diameter : 88 mm
Weight : 399 g

Estimated Volumetric Shipping Weight : 2.00 Kg
