BMW > 5 Series (F07/F10/F11) > B) FORCED INDUCTION (Turbo & supercharging) > - Charge / Boost pipes, Blow Off Valves Etc. > All Manufacturers

Product Code: acchgppn55-2



Click to Enlarge

Click to Enlarge
Description

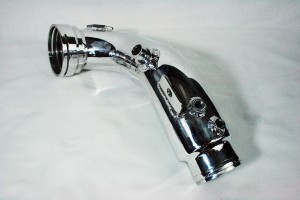

ACTIVE AUTOWERKE BMW N55 CHARGE PIPE

2011 - BMW E8X 135i with N55 engine
2011 - BMW E9X 335i with N55 engine

Active Autowerke is familiar with some of the unique issues that 2011 and newer N55 BMW 135i, 335i and 535i owners experience even running with the factory BMW boost.

The BMW N55 utilizes an all plastic construction for the factory charge pipe.
This charge pipe will eventually break, it is just a matter of time and when. Whenever the factory charge pipe break at the plastic seam, the engine immediately senses a huge vacuum leak where the engine ECU counters by sending the engine into a LIMP MODE condition.
Usually, the car's performance will feel dimished and lack luster as if running without a proper firing cylinder.

The Active Autowerke N55 Charge Pipe is a designated product designed from inception to cure and eliminate this problem on your BMW.
Constructed from all aluminum makes this charge pipe almost indestructible.
The connection to the throttle body is a CNC machined part to duplicate the factory fit as well making a tight, reliable seal.

Added features were also implemented to further enhance the BMW N55 performance. A large 3.00 inch all aluminum tubing would be the size used without any restrictions or reduced pipe sizes. This would enhance the airflow and peformance.

Owners of BMW with the N55 engine understands that additional power can be reliably maintained with the use of Water/Methanol injection as an added feature. However, the N55 current does not have a reliable source to accommodate the application of a Water/Methanol nozzles.

The Active Autowerke N55 Charge Pipe has a proper proviison for this specific application. A boss with two separate ports are provided upstream where the injected mix of water/methanol can properly atomize before entering the engine. The thread depths for the water/metahnol nozzles are also checked to allow for a proper spray pattern without hitting the inside walls of the threaded holes.

The BMW N55 engine does not utilize external diverter valves like it's N54 predecessor. Rather, the BMW N55 has diverter valves that are built inside the engine turbo compressor housings and no in the charge pipe. As such, there are no provisions to add larger BOVs.

KEY FEATURES:

- Specific design to correct a problem
- Consistent 3.00" tubing for increased performance
- Increase throttle response and decrease throttle lag
- CNC machined throttle housing for a poper seal
- Retains factory BMW O-Ring seal
- Provision of raised boss for 2 Water/Methanol nozzles
- BLACK powder coated for that OEM look

NOTE: The factory throttle clip is not included with the N55 Charge Pipe

Estimated Volumetric Shipping Weight : 4.00 Kg


Product Code: erf10f12f13chgpp



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge
Description
Ref: SKU: BM-ICP009

Key Features:

- Increase throttle response and decreases turbo lag.
- Lightweight High Grade 6061 Aluminium Piping.
- Replaces the factory soft plastic charge pipe that is prone to breaking under high boost.
- Throttle body matched 3" piping.
- Retains factory style o-ring throttle body lock flange. Precision CNC machined throttle body flange ensures leak free connection to throttle body. Quick and easy connection and disconnection to throttle body. Ideal connection compared to the silicone hose and hose clamp connection found in all other aftermarket diverter valve upgrade pipes available in the marketplace.
- Precision CNC machined MAP sensor flange ensures leak free connection.
- Charge Pipe features beaded ends and T-bolt clamps to prevent intercooler piping from coming off from boost.
- Silicone Hump Hose included.
- Compatible with the factory electronic diverter valve.
- Includes all hardware for complete installation.

1/8" NPT Bungs (For Methanol or Nitrous Injectors):

With the popularity of methanol injection systems and nitrous systems, we have added the option of having a 1/8" NPT threaded bung (for methanol or nos injectors) welded to our diverter valve charge pipe. This allows quick and easy installation of methanol/nitrous injectors that are used in methanol injection systems and nitrous systems. Our charges pipes come with 2 meth bungs standard (you can custom order only 1 or none). Each 1/8" NPT bung will come with a plug so that you can run with or without the methanol injector. This is perfect for those who do not have the Methanol Injection yet but plan to do so in the future.

Also, the 1/8" NPT bung can be used as a boost source if you do not run methanol injection. Perfect place to connect your boost gauge or other devices to. The N55 engine does not have a pressurise hose or fitting from the factory that you can easily tap into.

Please note that prices may vary according to exchange rate fluctuations.

Please refer to Evolution Racewerks Pricelist link below (MS Excel) for options/variations.



Estimated Volumetric Shipping Weight : 4.00 Kg

Additional Information
EVOLUTION RACEWERKS PRICELIST

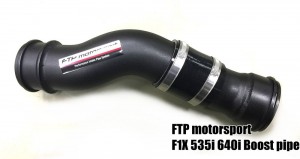

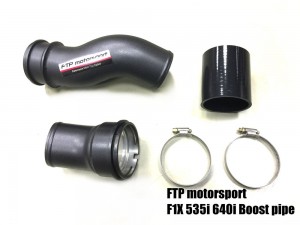

Product Code: sg71342bp



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge
Description

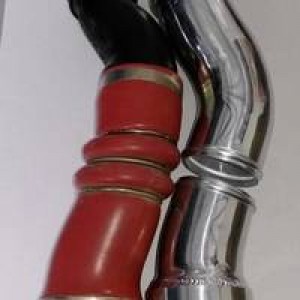

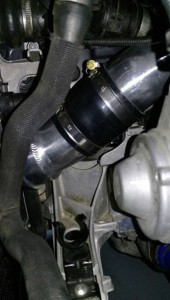

N55 boost pipe - Turbo to inter-cooler pipe (OEM part number 13717583728)

This product is suitable for following models:

Series 5
F07 GT, F07 GT LCI, F10, F10 LCI, F11, F11 LCI, F18, F18 LCI.

Series 6
F06 GC, F06 GC LCI, F12, F12 LCI, F13, F13 LCI

Series 7
F01 LCI, F02 LCI



Estimated Volumetric Shipping Weight : 5.00 Kg


Product Code: sg71335bp



Click to Enlarge

Click to Enlarge
Description
Key Features:

- Direct OEM replacement (OEM 13717597591).

- Made from Lightweight High Grade 6061 Aluminium Piping.

- Polished internal surfaces.

- Retaining the factory style O-ring lock flange.

- Providing the quick and easy connection / disconnection.

- 3 Ply silicone joining pipes.

- Superior connections compared to the silicone hose and hose clamp connections used in many other diverter valve upgrade pipes available.

- Optional Type III Hard Black Anodising (for unobtrusive and OEM look).

- Hard anodising helps improve durability of inter-cooler piping. Eliminating the bending, denting or collapsing issue of the OEM piping.

- Includes all hardware for complete installation.


This product is suitable for the following models:

Series 1
F20, F20 LCI, F21, F21 LCI

Series 2
F22, F87 M2, F23

Series 3
F30, F31, F34 GT, F35, F35 LCI

Series 4
F32, F33, F36

X Series
X3 F25, X4 F26


Estimated Volumetric Shipping Weight : 4.00 Kg

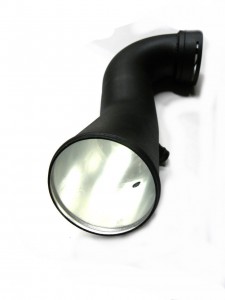

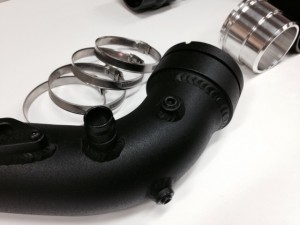

Product Code: sg71341



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge
Description
Key Features:

- Direct OEM replacement.

- Precision CNC Machined MAP Sensor Flange, ensuring a leak free boost connection.

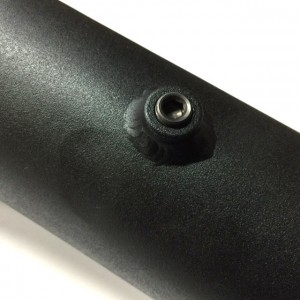

- 1/8" NPT Bungs (for methanol or nitrous injection or FTP intake temp sensor).

- Increasing throttle response and decreases turbo lag.

- Made from Lightweight High Grade 6061 Aluminium Piping.

- Throttle body matched 3" piping.

- Increased bore reduces turbulence and maximises flow.

- Polished internal surfaces.

- Retaining the factory style O-ring throttle body lock flange.

- Providing the quick and easy connection / disconnection to the throttle body.

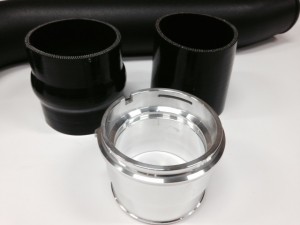

- 3 Ply silicone joining pipes.

- Superior connections compared to the silicone hose and hose clamp connections used in many other diverter valve upgrade pipes available.

- The Diverter Valve Charge Pipe features beaded ends and T-bolt clamps to prevent inter-cooler piping from disconnecting when under boost.

- Optional Type III Hard Black Anodising (for unobtrusive and OEM look).

- Hard anodising helps improve durability of inter-cooler piping. Eliminating the bending, denting or collapsing issue of the OEM piping.

- Compatible with the factory electronic diverter valve.

- Includes all hardware for complete installation.

- Silicone Hump Hose included.


Estimated Volumetric Shipping Weight : 5.00 Kg

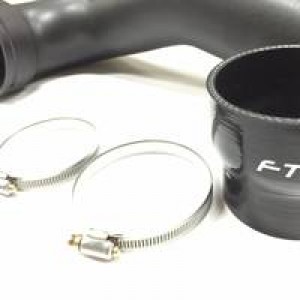

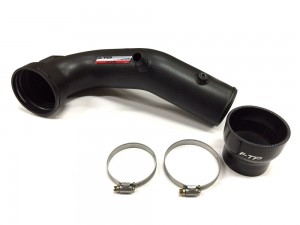

Product Code: sg71342



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge
Description
Key Features:

- Direct OEM replacement.

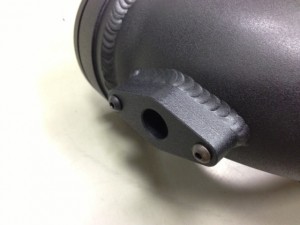

- Precision CNC Machined MAP Sensor Flange, ensuring a leak free boost connection.

- 1/8" NPT Bungs (for methanol or nitrous injection or FTP intake temp sensor).

- Increasing throttle response and decreases turbo lag.

- Made from Lightweight High Grade 6061 Aluminium Piping.

- Throttle body matched 3" piping.

- Increased bore reduces turbulence and maximises flow.

- Polished internal surfaces.

- Retaining the factory style O-ring throttle body lock flange.

- Providing the quick and easy connection / disconnection to the throttle body.

- 3 Ply silicone joining pipes.

- Superior connections compared to the silicone hose and hose clamp connections used in many other diverter valve upgrade pipes available.

- The Diverter Valve Charge Pipe features beaded ends and T-bolt clamps to prevent inter-cooler piping from disconnecting when under boost.

- Optional Type III Hard Black Anodising (for unobtrusive and OEM look).

- Hard anodising helps improve durability of inter-cooler piping. Eliminating the bending, denting or collapsing issue of the OEM piping.

- Compatible with the factory electronic diverter valve.

- Includes all hardware for complete installation.

- Silicone Hump Hose included.





Estimated Volumetric Shipping Weight : 4.00 Kg

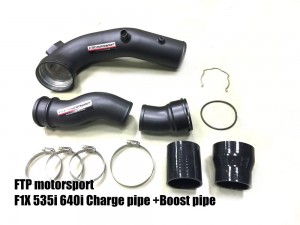

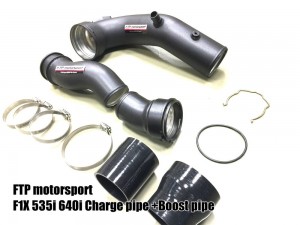

Product Code: sg71342f



Click to Enlarge

Click to Enlarge

Click to Enlarge
Description

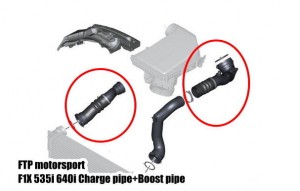

BMW F1X N55 (535i, 640i, 740i) charge pipe Combination Package.

Includes; FTP N20 charge pipe & FTP N20 boost pipe.

Key Features:

- Direct OEM replacement.

- Precision CNC Machined MAP Sensor Flange, ensuring a leak free boost connection.

- 1/8" NPT Bungs (for methanol or nitrous injection or FTP intake temp sensor).

- Increasing throttle response and decreases turbo lag.

- Made from Lightweight High Grade 6061 Aluminium Piping.

- Throttle body matched 3" piping.

- Increased bore reduces turbulence and maximises flow.

- Smooth Electroplating internal surfaces.

- Retaining the factory style O-ring throttle body lock flange.

- Providing the quick and easy connection / disconnection to the throttle body.

- 3 Ply silicone joining pipes.

- Superior connections compared to the silicone hose and hose clamp connections used in many other diverter valve upgrade pipes available.

- The Diverter Valve Charge Pipe features beaded ends and T-bolt clamps to prevent inter-cooler piping from disconnecting when under boost.

- Optional Type III Hard Black Anodising (for unobtrusive and OEM look).

- Hard anodising helps improve durability of inter-cooler piping. Eliminating the bending, denting or collapsing issue of the OEM piping.

- Compatible with the factory electronic diverter valve.

- Includes all hardware for complete installation.

- Silicone Hump Hose included.

- This combination offers a better price


Estimated Volumetric Shipping Weight : 5.00 Kg


Product Code: sg80036



Click to Enlarge

WITHOUT ADAPTOR
Click to Enlarge

WITH APADTOR FITTED
Click to Enlarge
Description
For BMW N55 engine 135i 335i 535i


This adaptor is installed between the boost sensor and mounting surface, allowing for a vacuum take off connection to be fitted to run a vacuum operated valve or boost gauge.


Estimated Volumetric Shipping Weight : 1.00 Kg

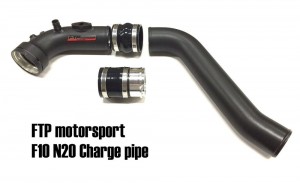

Product Code: sg71341f



Click to Enlarge
Description
BMW F1X N20 (520i, 528i) charge pipe Combination packages

Includes; FTP N20 charge pipe & FTP N20 boost pipe.

Key Features:

- Direct OEM replacement.

- Precision CNC Machined MAP Sensor Flange, ensuring a leak free boost connection.

- 1/8" NPT Bungs (for methanol or nitrous injection or FTP intake temp sensor).

- Increasing throttle response and decreases turbo lag.

- Made from Lightweight High Grade 6061 Aluminium Piping.

- Throttle body matched 3" piping.

- Increased bore reduces turbulence and maximises flow.

- Smooth Electroplating internal surfaces.

- Retaining the factory style O-ring throttle body lock flange.

- Providing the quick and easy connection / disconnection to the throttle body.

- 3 Ply silicone joining pipes.

- Superior connections compared to the silicone hose and hose clamp connections used in many other diverter valve upgrade pipes available.

- The Diverter Valve Charge Pipe features beaded ends and T-bolt clamps to prevent inter-cooler piping from disconnecting when under boost.

- Optional Type III Hard Black Anodising (for unobtrusive and OEM look).

- Hard anodising helps improve durability of inter-cooler piping. Eliminating the bending, denting or collapsing issue of the OEM piping.

- Compatible with the factory electronic diverter valve.

- Includes all hardware for complete installation.

- Silicone Hump Hose included.

- This combination offers a better price

Estimated Volumetric Shipping Weight : 5.00 Kg


Product Code: sg71391



Click to Enlarge

Click to Enlarge
Description
Features

- Increased Flow
- Direct OEM Replacement
- Caliber increase
- 3-Ply Silicon Couplers
- Bung for water injection
- Never blow up again

For maximum effect, The FTP Charge Pipe both increases flow and improves the reliability of your B58 engine BMW.

- The aluminum pipe replaces the brittle factory plastic pipe which can fail under increased boost pressure.

- The increased piping size helps to reduce turbulence and maximize flow into the engine.

This product is suitable for the following vehicles:

1' F20 LCI (09/2015 — 10/2016) M140i
1' F21 LCI (09/2015 — 10/2016)
2' F22 (09/2015 — 10/2016) M240i
2' F23 (09/2015 — 10/2016)
3' F30 LCI (10/2014 — 11/2016) 340i
3' F31 LCI (10/2014 — 10/2016)
3' F34 GT LCI (09/2015 — 10/2016)
4' F32 (04/2015 — 10/2016) 440i
4' F33 (03/2015 — 10/2016)
4' F36 Gran Coupé (03/2015 — 10/2016)
7' G11 (10/2014 — 10/2016) 740i
7' G12 (10/2014 — 10/2016)
5' G30 G31 ( 2016~ now) 540i

Estimated Volumetric Shipping Weight : 4.00 Kg


Product Code: sg71343



Click to Enlarge

Click to Enlarge

Click to Enlarge
Description
Features:
- OEM Fitment
- Increase Calibre and Flow
- Increase Throttle Response
- Decrease Turbo Lag
- 3-Ply Reinforced Silicone Couplers
- Bung for Water Injection
- Smooth Electroplating Inside (optional, customized color, need to wait 2~3 weeks)

In order to have better air tightness and stability FTP developed the Reinforced Seal for full intercooler pipe system

Suitable for the following vehicles:

- 5' F07 GT (04/2011 — 06/2013)
- 5' F07 GT LCI (08/2012 — 02/2017)
- 5' F10 (01/2009 — 06/2013)
- 5' F10 LCI (10/2012 — 10/2016)
- 5' F11 (02/2009 — 06/2013)
- 5' F11 LCI (08/2012 — 02/2017)

Estimated Volumetric Shipping Weight : 6.00 Kg


Product Code: 900-02-201



Click to Enlarge

Click to Enlarge

Click to Enlarge
Description
Blow Off Valve 50 mm V-Band
(Please also see alternate listing for Nuke Blow Off Valve FOR 50 mm Hose Connection)

50 mm piston valve with the highest flow capacity available. When it is necessary to be able to rely on the installation and function.

Designed with a oversized 50 mm valve; we believe this is the largest valve available with the highest flow capacity. The body and all internal components are CNC-machined from 6082 aluminum alloy, anodized for a long lasting, corrosion-free appearance.

Designed and manufactured to handle extreme amounts of power with the same hallmark as all of our performance products.

The Blow off Valve comes with one quick connect pneufit fitting, with oversized 1/4 connection for quick and actuator response. If needed, barb fittings are available.

Spring Pressure Chart:
0,50 - 0,75 bar / 7,25 - 10,9 psi : Additional BLACK SPRING
0,35 - 0,50 bar / 5,07 - 7,25 psi : Stock / included BLUE SPRING
0,00 - 0,35 bar / 0,00 - 5,07 psi : Additional WHITE SPRING

** Measure engine vacuum at idle and with engine at operating temperature.

Available both with V-Band or silicon hose attachment. Nuke Performance unique V-Band design to enable perfect fitment.
The V-Band version is complete with clamp and welding flange.

Technical information :
• CNC manufactured from aluminium alloy 6082.
• The valve seal utilizes a Viton O-ring that is glued in place to prevent the possibility of sticking to the seat and pulling out.
• Also available with V-Band Connection.
• Delivered with 1x 1/4 G quick connect pneufit fitting for 6mm tubing.
• Delivered with "blue spring" : 0,35 - 0,50 bar / 5,07 - 7,25 psi.
• Springs are available in three different setups : White, Blue , Black.
• Laserengraved.

Measurements :
Height : 98 mm
Diameter : 88 mm
Weight : 399 g

Estimated Volumetric Shipping Weight : 2.00 Kg


Product Code: 900-01-202



Click to Enlarge

Click to Enlarge
Description
Blow Off Valve 50 mm for hose connection
(Please also see alternate listing for Nuke Blow Off Valve for V band connection)

50 mm piston valve with the highest flow capacity available. When it is necessary to be able to rely on the installation and function.

Designed with a oversized 50 mm valve; we believe this is the largest valve available with the highest flow capacity. The body and all internal components are CNC-machined from 6082 aluminum alloy, anodized for a long lasting, corrosion-free appearance.

Designed and manufactured to handle extreme amounts of power with the same hallmark as all of our performance products.

The Blow off Valve comes with one quick connect pneufit fitting, with oversized 1/4 connection for quick and actuator response. If needed, barb fittings are available.

Spring Pressure Chart:
0,50 - 0,75 bar / 7,25 - 10,9 psi : Additional BLACK SPRING
0,35 - 0,50 bar / 5,07 - 7,25 psi : Stock / included BLUE SPRING
0,00 - 0,35 bar / 0,00 - 5,07 psi : Additional WHITE SPRING

** Measure engine vacuum at idle and with engine at operating temperature.

Available both with V-Band or silicon hose attachment. Nuke Performance unique V-Band design to enable perfect fitment.
The V-Band version is complete with clamp and welding flange.

Technical information :
• CNC manufactured from aluminium alloy 6082.
• The valve seal utilizes a Viton O-ring that is glued in place to prevent the possibility of sticking to the seat and pulling out.
• Also available with V-Band Connection.
• Delivered with 1x 1/4 G quick connect pneufit fitting for 6mm tubing.
• Delivered with "blue spring" : 0,35 - 0,50 bar / 5,07 - 7,25 psi.
• Springs are available in three different setups : White, Blue , Black.
• Laser engraved.

Measurements :
Height : 98 mm
Diameter : 88 mm
Weight : 399 g

Estimated Volumetric Shipping Weight : 2.00 Kg




Return to Top



© 2024    Site Maintenance by C2G Ltd
