BMW > M3 (F80M) > A) ENGINE PERFORMANCE (See also forced induction & remapping sections) > - Oil, Water & Cooling System Upgrades, Connector Blocks, Sump Baffles, Guards Etc > CSF COOLING

Product Code: csf8220



Click to Enlarge

Click to Enlarge

Click to Enlarge

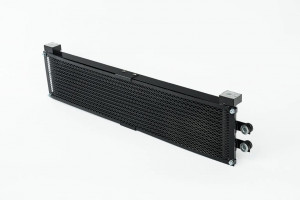

Description

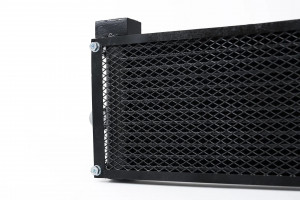

By keeping the factory mounting location and relative dimensions, the factory ducting and shrouds are all reused with no modifications necessary. In addition, CSF added a removable/replaceable rock guard to keep the cooler safe. You’ve no doubt heard horror stories about an OEM cooling getting punctured and spilling oil all over the road or track. Now you can feel safer and more confident that your oil system is safe from road debris.

-5.4mm Tall Multi-Louvered Fin vs. OEM 7mm
-Made with CSF’s AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for -Optimal Oil Flow and Maximum Surface Area Contact
-Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow
-OEM Style Inlet/Outlet Connections
-Drop-in Fit Requires No Modifications to Install
-2-Year Limited Warranty
-Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance and/or Transmission Tuning

Applications:
2015-2018 BMW F80 M3 (incl. CS & Competition)
2015-2020 BMW F82/F83 M4 (incl. CS & Competition)
2019-2021 BMW F87 M2 Competition
2020+ BMW F97 X3M (incl. Competition)
2020+ BMW F98 X4M (incl. Competition)

OEM Part Number: BMW: 17 21 2 284 540

Estimated Volumetric Shipping Weight : 4.00 Kg


Product Code: csf8258-1



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge
Description
High Performance Auxiliary radiators
** PLEASE NOTE, You require TWO of these par car

PLEASE CONTTACT US FOR BEST PRICE, WE WILL BEAT ANY QUOTE

FEATURES
• Sold Individually – all applications require 2 auxiliary radiators
• Multi-Fit – Fits Both Left & Right Side
• 2-Row 42mm High-Performance Core Featuring CSF’s B-Tube Technology
• Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum
Surface Area Contact
• Tank Volume increased by 10% and Core Size Increased by 6.4%
• 100% All-Aluminum TIG-Welded Construction
• OEM Style “Quick Connect” Inlet/Outlet
• True “Drop-in Fit” Requires No Modifications to Install
• Includes Detachable Rock Guard
• Individually Leak and Pressure Tested
• High-Performance Upgrade Suitable for Professional Racing, Street

Performance, or OEM Replacement
• Satin Black Finish for OEM+ Look
• 2 Year Limited Warranty

OEM REPLACEMENT NUMBER
• BMW: 17-11-2-284-603 / 17112284603 (Left)
• BMW: 17-11-2-284-604 / 17112284604 (Right)

APPLICATIONS
• 2015-2018 BMW F80 M3 (incl. CS & Competition)
• 2015-2020 BMW F82/F83 M4 (incl. CS, GTS, & Competition)
• 2019-2021 BMW F87 M2 Competition (incl. CS)

PLEASE CONTTACT US FOR BEST PRICE, WE WILL BEAT ANY QUOTE


Estimated Volumetric Shipping Weight : 5.00 Kg


Product Code: csf8082cc



Click to Enlarge

Click to Enlarge

Click to Enlarge
Description
CSF Race F8X m3/m4 - Top Mount Charge-Air-Cooler in your choice of colour!

Not only can you improve the performance of your ///M Car with the CSF Charge-Air-Colour, you can now greatly enhance the aesthetic of your engine bay with CSF custom finish options! Whether you wish to match the exterior colour of your car, or stand out with a Hydro-dipped design.

World’s 1st cast endtank designed top mount charge-air-cooler for the BMW S55 engine in the BMW F8x m3/m4 (F80 m3, F82/F83 m4)

Multiple air dividers cast into both the hot/cold side endtanks for optimised air flow through the custom designed CSF liquid-to-air intercooler core (CFD analysis and testing completed to ensure optimal performance)

**60% increase in core size compared to the OEM cooler.

Left/right, cross-flow, dual-pass core configuration with 2-stage water cooling for maximum efficiency and intake temperature reduction (vs. OEM single-pass vertical-flow design)

Designed with 3D scanning / rapid prototype technology to ensure precise fitment and maximum surface area utilization.

“Drop-in fit” design for an easy & quick plug-and-play installation. Complete with OEM style “Quick-Connect” water connections and sensor ports.

Additional costs depending on colour choice. Colours available:
- Single Colour (+£216.00)
- Heat Dispersion Thermal Coating (+£216.00)
- Single Colour with Sparkle (+£264.00)
- Hydro-dipped (+£312.00)
- Mirror Polished (+£372.00)
- Single Colour with Pinstripes (+£420.00)
- Single Colour with Coloured Stripes and Coloured Logo (+£624.00)


Estimated Volumetric Shipping Weight : 5.00 Kg


Product Code: csf8066



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge
Description
CSF Engine Oil Cooler (BOSS - Dual Pass - Race - Universal) 8066

-10 AN male fitting for inlet and outlet

The CSF "BOSS" Oil Cooler came to be after CSF was made aware of the need for a high flow, high performance oil cooler for the most demanding of applications.

Features of the CSF BOSS Premium Dual-Pass Univeral Oil Cooler

-10 AN MALE (inlet/Outlet Connections)
- Dual Pass Turbulated 8-Row Core with high density multi-louvered fin pitch
- 100% TIG Welded cast endtank design
- Flipable Universal Design allowing inlet/outlet position on either side
- 2 M8 Mounting Bosses (with steel helicoil)
- Heavy Duty Bar/Plate construction for durability and strength (ideal for external front bumper placement)
- Unique semi-gloss / matte black powdercoat finish using thermal rejection paint
- Overall Dimensions in inches: 22 L x 5 H x 2.25" wide
- This is a universal product and is not made for any specific vehicle. Universal products may require additional parts and labour for installation.


Estimated Volumetric Shipping Weight : 12.00 Kg
