BMW has always been a great car but lacks certain components to be truly Ultimate. One being the proverbial oil pressure gauge. To help resolve this dilemma, one has to resort to the aftermarket like VDO, Autometer, AEM, etc. to source such a gauge. You can make your selection based on size, face back light, digital or analog, and electronic or mechanical. Regardless of your selection, you have to tap into the oil artery to monitor the engine oil pressure.

The Active Autowerke ODB, Oil Distribution Block was created just to solve this problem.

- With a 12x1.50mm pitch, it mounts in the original position of the factory oil pressure switch, eliminating the need to drill or tap.
- Retains the factory oil pressure switch to still satisfy the oil warning light in the instrument cluster.
- Has a dedicated port to install an additional electric oil pressure sender or fitting to connect a mechanical oil pressure feed.
- Can be used by turbochargers or superchargers requiring an oil feed source


Design feature of the Active Autowerke ODB
- Has to be small and compact. One could drill and tap a block of aluminum to do the task, but... The ODB is the smallest 2 part ODB on the market currently for BMW application today
- With a 2 part unit, the rotating design allows for a FULL 360 degree rotation. This allows the sender (regardless of size) to rotate as it fits against the oil filter housing without any interference
- Engine bay picture shows a BMW E9x M3 S65 V8 with oil pressure sender installed using a ODB-KIT. Look at the space constraints. A small size and flexible 360 degree rotation comes in very handy.
- CNC machining allows multiple wrench placements to ensure a secure torque
- 12mm x 1.50mm pitch makes the installation factory like for most BMWs
- 1/8-27NPT suitable for most aftermarket senders currently produced
- Complete with (2) crush rings for a seamless installation

NOTE: Factory oil pressure sender and / or VDO oil pressure sender NOT INCLUDED with ODB-KIT .

Estimated Volumetric Shipping Weight : 0.50 Kg



Click to Enlarge

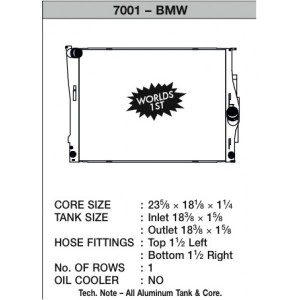

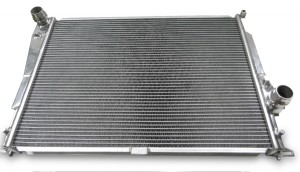

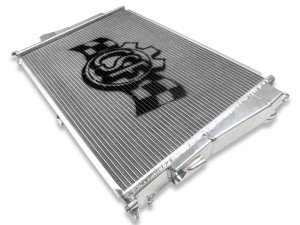

CSF Race Radiator for 2006 BMW 325, 07-09 BMW 328, 06-10 BMW 330, 09-10 BMW Z4

High performance cooling radiator.

Estimated Volumetric Shipping Weight : 5.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

CSF E9X 335/E82 135 Auto Triple-Pass Alu Rad

For those getting serious about their E9X (track or street), it's time to talk about cooling. These are a must for anyone that takes their car to the track or with a turbo/supercharger. Not all aluminum radiators are the same!

CSF's radiator does more that just eliminate those problematic plastic end tanks, but packs more efficient B-tubes with greater surface area for cooling. Add this with precision multi-louvered fins to increase heat rejection and you have a package that fits within the confines of the factory radiator space. Don't be fooled by others that attach aluminum end tanks to traditional OE stock cores!

This fits E9X 335/E82 135 Auto only


Estimated Volumetric Shipping Weight : 15.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

CSF E9X 335/E82 6 speed Triple-Pass Alu Rad

For those getting serious about their E9X (track or street), it's time to talk about cooling. These are a must for anyone that takes their car to the track or with a turbo/supercharger. Not all aluminum radiators are the same!

CSF's radiator does more that just eliminate those problematic plastic end tanks, but packs more efficient B-tubes with greater surface area for cooling. Add this with precision multi-louvered fins to increase heat rejection and you have a package that fits within the confines of the factory radiator space. Don't be fooled by others that attach aluminum end tanks to traditional OE stock cores!

This fits E9X 335/E82 6 speed only


Estimated Volumetric Shipping Weight : 15.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

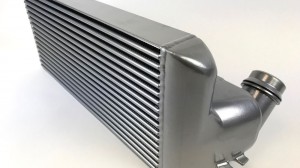

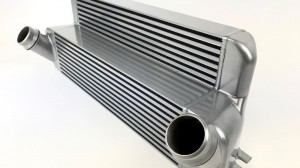

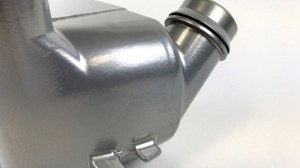

Have an ECU Tune? You'll need one of these. Once boost is raised beyond the factory levels the stock intercooler struggles to cool the more compressed, thus heated air leading to high charge temps and the ECU reducing power.

The CSF Race High-Performance Intercooler dramatically reduces charge temps versus the stock intercooler, especially on cars running higher boost than stock.

Stepped core design for maximum surface area contact and internal intake air-flow volume. Largest “drop-in fit” intercooler available in the industry.
Designed with 3D scanning / rapid prototype technology to ensure precise fitment and maximum surface area utilization. Lab tested on CSF’s in-house wind tunnel.
Rounded front face bar/plate design for optimized airflow through the core.*
Drop-in fit” design for an easy & quick plug-and-play installation. Complete with OEM style “Quick-Connect” inlet/outlet connections.
Fully reversible back to OEM spec with no modifications needed.

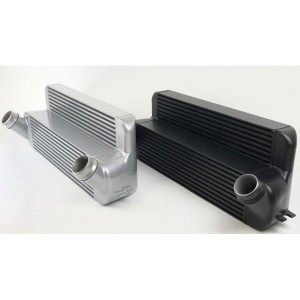

Available in silver (#8115) and matte black (#8115B)
Lifetime warranty.
25c drop in temperatures when compared to the OEM intercooler after multiple repeated runs.
Power increase of 15-20 hp on stock cars, 25+ hp on modified vehicles.

Estimated Volumetric Shipping Weight : 15.00 Kg



Click to Enlarge

Click to Enlarge

Fits N55 Engined F20/21/22/23/30/31/32/33/34/36 models

It's no industry secret that the N55, when driven under high loads for sustained periods of time or in high ambient conditions, it has an engine oil temperature problem.

Owners often see temperatures in the region on 130°C + and often going into the 140°C+ region if care isn't taken. High operating temperatures can reduce the longevity of engine components and ultimately result in failures, sooner.

To give owners more engine cooling performance which can allow them to drive their car harder for longer in the same conditions, CSF has developed a unique oil cooler upgrade for the N55 equipped cars.

BMW N55 Oil Cooler Features...
- Innovative 2-core in-series design.
- Secondary in-series backside cooler has an additional 5 rows of cooling for an -40% increase in heat rejection.
- Converted to a single-pass design with high pressure return line for optimal flow.
- Made with CSF's AC condenser technology using a 1 row super-high pressure 26mm multi-channel microtube.
- High-density multi-louvered fin design for maximum surface area contact.
- "Drop-in fit" requiring no modifications to install.
- Accepts all attaching OEM components including oil-line connections, mounting brackets and shrouds/ducting.
- World's 1st and only true "Plug-and-Play" upgraded engine oil cooler for the BMW N55 engine.
- Track tested and proven by Hittman Racing's M235iR endurance race car.
- Requires an additional 1/2 quart (approx 570ml) for proper fill-up during installation (OEM cooler is 7 quarts [7.96lt]. CSF's upgrade Race-Spec N55 oil cooler requires 7.5 quarts [8.5lt] to fill up properly.


Estimated Volumetric Shipping Weight : 5.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

CSF Engine Oil Cooler (BOSS - Dual Pass - Race - Universal) 8066

-10 AN male fitting for inlet and outlet

The CSF "BOSS" Oil Cooler came to be after CSF was made aware of the need for a high flow, high performance oil cooler for the most demanding of applications.

Features of the CSF BOSS Premium Dual-Pass Univeral Oil Cooler

-10 AN MALE (inlet/Outlet Connections)
- Dual Pass Turbulated 8-Row Core with high density multi-louvered fin pitch
- 100% TIG Welded cast endtank design
- Flipable Universal Design allowing inlet/outlet position on either side
- 2 M8 Mounting Bosses (with steel helicoil)
- Heavy Duty Bar/Plate construction for durability and strength (ideal for external front bumper placement)
- Unique semi-gloss / matte black powdercoat finish using thermal rejection paint
- Overall Dimensions in inches: 22 L x 5 H x 2.25" wide
- This is a universal product and is not made for any specific vehicle. Universal products may require additional parts and labour for installation.


Estimated Volumetric Shipping Weight : 12.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Preserve your limited slip differential. When your differential's oil temp gets too high, you lose horsepower and risk CDF (Catastrophic Differential Failure). There is only one way to control it, and that is with a Differential Oil Cooler Kit. You can install this kit underneath the car or inside the boot.

This kit is supplied with:

Differential Oil Pump
Mocal Differential Cooler
All Fittings Necessary to Complete Install
10 ft length -10 Aeroquip Hose
Instructions

Some post 2006 applications may require slight alterations to fittings.


Estimated Volumetric Shipping Weight : 6.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

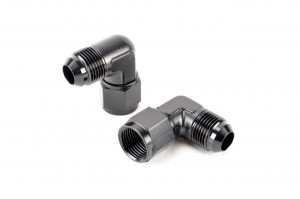

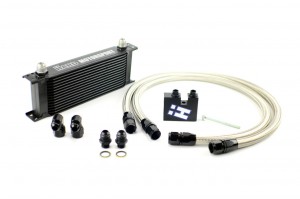

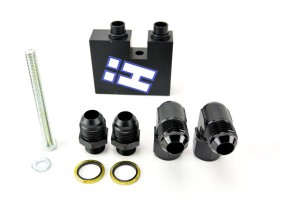

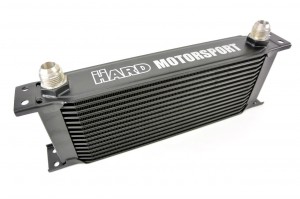

HARD Motorsport Oil Cooler Kit BMW E9X 335i 07-10

The N54 is well known for it's performance and the ability to adapt to higher boost levels. High oil temperature problems are well known in the N54 engine. Eliminate further cooling issues by supplementing the factory oil cooler with an additional unit. The kit allows you to run the factory cooler along with our unit eliminating oil cooling issues.

Estimated Volumetric Shipping Weight : 8.00 Kg



Click to Enlarge

Click to Enlarge

Ref: BM-COOL001

Key Features:

- TWO large 9"x8"x2" (11"x8"x2" with end tanks) Oil Coolers. Factory stock single oil cooler 8.75"x4.75"x1"
- Over 700% larger (combined twin coolers) than the factory oil coolers!!!
- Twin coolers have a total of 288 cubic inches of core! Factory oil cooler has 41 cubic inches.
- Available with no finish (silver) or Type III Hard Black Anodising (for stealth). Hard anodising helps improve durability of intercooler fins against damage from road debris (rocks).
- Enclosed box with venting louvers - protects oil coolers from road debris without sacrificing airflow!
- High Quality Goodrich AN Fittings in Black Anodise.
- High End Goodrich Nylon Braided Oil Lines - much better than Stainless Steel braided Oil Lines
- Includes all hardware needed to install. No need to go hunting for hardware to finish the installation.

Type III Hard Anodise Black Finish:

The oil coolers come standard with no finish (silver colour). With the Type III Hard Anodised finish, it is very hard to tell there is an aftermarket oil cooler on the car. Another added benefit of the Type III Hard Anodising is that it makes the oil cooler fins harder and stronger, which makes it less prone to getting bent/damaged from road debris like rocks etc...

Conversion Kit For Early 2006 Model 335i With No Factory Oil Cooler:

The very first 335i built in early 2006 did not come from the factory with an oil cooler. With the N54 engine running very hot, BMW quickly realised that this was a big mistake. An oil cooler was quickly added the next year. For those who do not have the factory oil cooler, you will need to convert your car's oil filter housing to a later model year that has external ports for an oil cooler. Evolution Racewerks is now offering these brand new genuine BMW parts to make the conversion. Parts included: Oil Filter Housing, Oil Cooler Thermostat housing, gaskets and hardware.

Please note that prices may vary according to exchange rate fluctuations.

Please refer to Evolution Racewerks Pricelist link below (MS Excel) for options/variations.


Estimated Volumetric Shipping Weight : 10.00 Kg



Click to Enlarge

Ref: BM-COOL002

Key Features:

- Reduces the high oil temperatures that the N54 and N55 engine produces which helps reduce oil breakdown, improving the longevity of your car!
- Large 9"x8"x2" (11"x8"x2" with end tanks) Oil Coolers. Factory stock oil cooler 8.75"x4.75"x1"
- Over 350% larger capacity than the factory oil cooler!!!
- Sports Oil Cooler has a total of 144 cubic inches of core! Factory oil cooler has 41 cubic inches.
- Available with no finish (silver) or Type III Hard Black Anodising (for stealth). Hard anodising helps improve durability of intercooler fins against damage from road debris (rocks).
- Enclosed box with venting louvers - protects oil coolers from road debris without sacrificing airflow!
- High Quality Goodridge AN Fittings in Black Anodise.
- High End Goodridge Stainless Steel Braided Oil Lines
- Includes all hardware needed to install. No need to go hunting for hardware to finish the installation.

Type III Hard Anodise Black Finish:

The oil coolers come standard with no finish (silver colour). With the Type III Hard Anodised finish, it is very hard to tell there is an aftermarket oil cooler on the car. Another added benefit of the Type III Hard Anodising is that it makes the oil cooler fins harder and stronger, which makes it less prone to getting bent/damaged from road debris like rocks etc...

Upgrade to a Competition Series Twin Cooler:

The Sports Series Oil Cooler Kit is upgradable to the Competition Series Twin Oil Cooler Kit. Just specify when ordering. The Competition Series Twin Oil Cooler Kit is ideal for those who track their cars. When the need finally comes for the Competition Series Oil Cooler Kit, you don't need to sell your Sports Oil Cooler Kit. Just purchase the upgrade kit!

Conversion Kit For Early 2006 Model 335i With No Factory Oil Cooler:

The very first 335i built in early 2006 did not come from the factory with an oil cooler. With the N54 engine running very hot, BMW quickly realised that this was a big mistake. An oil cooler was quickly added the next year. For those who do not have the factory oil cooler, you will need to convert your car's oil filter housing to a later model year that has external ports for an oil cooler. Evolution Racewerks is now offering these brand new genuine BMW parts to make the conversion. Parts included: Oil Filter Housing, Oil Cooler Thermostat housing, gaskets and hardware.

Please note that prices may vary according to exchange rate fluctuations.

Please refer to Evolution Racewerks Pricelist link below (MS Excel) for options/variations.


Estimated Volumetric Shipping Weight : 10.00 Kg



Click to Enlarge

Click to Enlarge

BMW oil catch tank for N54 335i 135i

This product allows to keep oil out of the Air Intake System.

Features:

- Increases air intake efficiency

- Promotes engine longevity

- Non-clogging air/oil separation

- No-restriction design

- Large inlet/outlet. No tapering down

- Unobtrusive mounting on cooler side of the engine bay

- Anodised back lightweight aluminium



Estimated Volumetric Shipping Weight : 4.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

- This is installed in the BMW oil cooler system thermostat

- Controls the oil temperature between 90 degrees C to 110 degrees C
(for BMW N54 N55)

- Lowers the engine oil temperature for maximum racing performance

This product is suitable for the following models:

Series 1
- E82; 135i, 1M N54, N55
- E88; 135i N54 / N55

Series 2
- F2X; M135i, M235i

Series 3
- E90; 335i, 335xi N54, N55
- E91; 335i, 335xi N54, N55
- E92; 335i, 335xi N54, N55
- E93; 335i, 335xi N54, N55
- F3X; 335i, 435i

Series 5
- E60; 535i, 535xi
- E61; 535i, 535xi
- F1X; 535i, N55 (It must be equipped with oil cooler)

Series 6
- F1X; N55, 640i (It must be equipped with oil cooler)



Estimated Volumetric Shipping Weight : 1.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

NEW, updated design allowing for more applications!

The Oil Cooler Fitting kit allows greater flexibility in the routing of oil cooler lines. Standard oil coolers utilize “hard lines” which can cause fitment issues for cars with superchargers, Accusumps, or other aftermarket performance parts. This kit replaces the oil cooler hard lines with two engineered -10 AN fittings, mounting bracket, and O-rings. Flexible braided hoses can then be run to the oil cooler which eliminates routing issues from supercharges, intakes, and other components. The brackets are CNC machined stainless steel and the -10 AN fittings are lightweight aluminum.

THIS NEW REVISED Kit fits E36 Euro oil filter housing, E36 Euro oil cooler, E46 M3 stock oil filter housing, E46 M3 stock oil cooler, and works great with aftermarket oil coolers.

Estimated Volumetric Shipping Weight : 1.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

- Replacement adapter oil cooler thermostat screw plugs for BMW N54 3.0L and N55 3.0L

- This product is required when installing oil temp gauge or oil pressure gauge.

- These are the screw plugs that are be found in the oil cooler thermostat assembly

- To accept a 1/8NPT connector.

- Made from a hard anode material

- The oil cooler thermostat assembly is very important to maintaining proper oil temperatures. These screw plugs could be the cause of oil leaks near the filter housing. Replacing these screws will keep the engine bay clean and free from oil spray.

- The thermostat assembly has 2 screw plugs.

- Sold individually





Estimated Volumetric Shipping Weight : 2.00 Kg



Click to Enlarge

Macht Schnell H20 Guage Bosses are made of high strength aircraft aluminum 6061 alloy material, cut and machined using the most advanced manufacturing technology, and is designed to withstand high temperatures without compromising durability and reliability. After machining, bosses are then anodized for additional strength, anti-corrosion & wear resistance.

Perfect fit for the different hoses and water-tight to prevent leaking. Heavy duty hose clamps included.

Models Supported:

- 2008+ BMW E82 1-Series & 1M
- 2006+ BMW E9X 3-Series & M3

Estimated Volumetric Shipping Weight : 1.50 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

An Oil Pan Baffle is an essential upgrade for a high power and / or tracked vehicle.
These baffle are designed to keep oil surrounding the oil pick-up tube at all times, so preventing oil starvation of the engine under hard cornering and acceleration loads.
This part is VITAL as a significant loss of oil pressure will lead to catastrophic engine failure.
Images and price shown here is for the V8 S65 engine, but we offer baffles for most BMW engines, please cal or
E-Mail us for more info / prices .

Estimated Volumetric Shipping Weight : 4.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

This kit features components made in-house in the USA to our motorsports standards for superior fitment and reliability. These kits have found their way on to all of our VAC racing vehicles and vehicles around the world. Thanks to quality components; they survive for years and years on the track with no issues.

Upgraded and improved constantly since inception to make sure it is the easiest to install and the best functioning product available.

Super high quality A/N fittings and lines, heat exchanger and CNC'ed components combined for a direct replacement/upgrade for your current setup. This systems flexibility allows it to be used by any racer as it can install in any way you wish. The addition of of an in-line thermostat allows street use without a problem.

This kit features a Billet Aluminum Racing Oil Filter Housing made from 6061 T6 aluminum. The two piece design allows direct replacement of factory housing and maintains alternator and power steering in their original locations.

Features:
•Allows easy instal Dry Sump or Acu-sump Kits.
•Provides oil temp, oil pressure, and VANOS line ports.
•Excellent for F/I setups like Turbos or S/Cs that require an oil feed line.
•Supplied with AN fittings and P/S Pump Spacers.
•More than full two pounds lighter than factory housing.
•Allows for easy service of components beneath intake manifold.
•Simplifies plumbing of remote oil cooler in all applications.
•Can be used on the street with the addition of in-line thermostat and filter.

Oil Cooler Sizes:
11 x 11" Cooler (most cooling effect) & 11 x 8" Cooler 11 x 5" Cooler (easiest to install)

NOTE: kit prices may vary slightly dependant on exact model and size of cooler required.

Also available at extra cost for this kit :
-Reusable In-line Racing Oil Filter £128.00
-Add External Thermostat ( for street car use) £155.00

Estimated Volumetric Shipping Weight : 5.00 Kg



Click to Enlarge

This Remote Oil Sensor Manifold is designed to facilitate the installation of Oil Pressure or Temp sensor/s.

Originally designed so that the S14 owner can send oil to this manifold, install an aftermarket gauge and still maintain the OEM "emergency oil pressure" dummy light- it had become popular as a quasi-universal item.

Popular on cars that read artificially higher oil temps at the sensor due to the location of the exhaust manifolds or other issues.

•(1) 1/8 NPT Inlet
•(2) Sensor holes: 1/8 NPT + 12x1.5 Metric

This manifold is designed for easy installation with two mounting holes to sheet metal.

Notes:
•Sensors and fittings are sold separately.
•(Due to the fact oil doesn't flow through this type of manifold, Oil temp is not a recommended use for this piece, pressure is ideal).


Estimated Volumetric Shipping Weight : 2.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

An excellent upgrade for those who race or have a modified / higher power engines, this is the best OE style oil pump available anywhere.

Lubrication issues are a common killer of BMW engines. The dual-pickup pump is much better than standard single pickup but this pump is a dramatic improvement over both.

This oil pump starts with an OEM housing (either supplied by you, or as a core from us at extra cost) that is expertly modified to provide higher volume and improved reliability over stock.

Effective lubrication is critical to all high performance engines, especially the high specific output S54 & S50. The S54 especially, with its narrow rod bearings is sensitive to oil starvation and bearing failure. Assuring that your engine will not fail due to a poor lubrication is crucial during all operating conditions.

This pump features two important upgrades:

1) Engineered using the Oil Pump Upgrade reinforcement kit (as featured elesewhere in this section) integrated in it's design; giving a stronger gear drive mechanism for much lower likelihood of the common pump failures on the track or hard road use.

2) Fitted with custom gear set with a larger sweep area to the pump mechanism, increasing volume by 22%.

Important Notes about this Service:
A good used or new oil pump is required for this conversion service. Therefore there are 3 options:

1 – We send you a new OEM BMW Oil Pump with the high volume converson and oil pump upgrade kit installed., and charge you extra the cost of this new core pump, in addition to the cost quoted on this page for the actual upgrade service.
2 – You send us your OEM BMW S54 or S50B32 Euro Oil Pump ahead of time and we perform the upgrade on your pump
3 – Occasionally we have a stock of good reconditioned S54 pumps that we can perform the service to, which is good if you don’t want to buy a brand new pump, please enquire.

PLEASE CALL US TO DISCUSS YOUR REQUIREMENTS & BEST PRICES.
(as example, typical 2017 cost of fully uprated pump including supply of a 2nd hand OEM core unit would be approximately £950.00 inc vat )


Estimated Volumetric Shipping Weight : 7.00 Kg



Click to Enlarge

Ref: 210001017

Silicon Hose Kit BMW E82 E90

Package:
- Inlet Silicone hose , HD
- Outlet Silicone hose
- Aluminium Adapter IC-Intake
- 1 Set 12mm Stainless Steell Norma Clamps

This hose kit only fits with Wagner's original Intercooler

The item picture is for illustration only - actual shape may vary.

Estimated Volumetric Shipping Weight : 4.00 Kg
