CSF E46 M3 ALL-ALUMINIUM DUAL-PASS RACE-SPEC OIL COOLER

Featuring...
- Designed, developed, and track proven in collaboration with BMW M3 tuning specialist and parts manufacturer, Rogue Engineering
- Replaces OEM unit single-pass design and plastic shroud with a unique top/bottom dual-pass design for maximum surface area and flow.
- “Drop-in fit” requiring no modifications to install. Accepts factory oil-line connections
- Fully TIG-welded extruded-endtank design vs. OEM mechanically jointed and tack-welded design for superior reliability & durability
- Fits precisely with the contour of the OEM bumper. No issues with aftermarket splitter attachement either Turbulated heavy/duty bar/plate design for the most reliable & durable oil cooler available for the platform
- 8 rows of maximum cooling with a high density multi-louvered fin pitch design
- Designed to work with OEM radiator brackets or CSF’s all-aluminum triple-pass radiator (CSF#7058) Motorsport silver finish



Estimated Volumetric Shipping Weight : 8.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

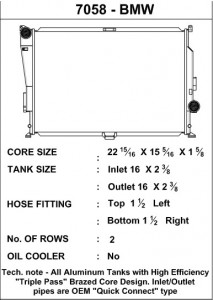

CSF E46 M3 ALUMINIUM TRIPLE PASS RADIATOR

Featuring...
- 2 row 42mm core (dual core) featuring CSF’s exclusive B-tube technology

- Core features an ultra-efficient fin with 6.5mm fin height and multi-louvered design for maximum surface area contact

- Triple-pass flow structure allows the coolant to flow across the core of the radiator 3 times before exiting the radiator for lowest outlet temperatures possible

- CNC machined “quick-connect” inlet/outlet connections

- CNC machined brackets and fittings for superb fit and durability

- All-aluminum race style drain plug

- 1 hour “mirror finish” hand polish

- “Drop-in fit” requiring no modifications to install. Accepts all attaching OEM components including “quick-connect” hoses, AC condenser, mounting brackets, and fan shroud

Estimated Volumetric Shipping Weight : 10.00 Kg



Click to Enlarge

Click to Enlarge

Click to Enlarge

Click to Enlarge

CSF Engine Oil Cooler (BOSS - Dual Pass - Race - Universal) 8066

-10 AN male fitting for inlet and outlet

The CSF "BOSS" Oil Cooler came to be after CSF was made aware of the need for a high flow, high performance oil cooler for the most demanding of applications.

Features of the CSF BOSS Premium Dual-Pass Univeral Oil Cooler

-10 AN MALE (inlet/Outlet Connections)
- Dual Pass Turbulated 8-Row Core with high density multi-louvered fin pitch
- 100% TIG Welded cast endtank design
- Flipable Universal Design allowing inlet/outlet position on either side
- 2 M8 Mounting Bosses (with steel helicoil)
- Heavy Duty Bar/Plate construction for durability and strength (ideal for external front bumper placement)
- Unique semi-gloss / matte black powdercoat finish using thermal rejection paint
- Overall Dimensions in inches: 22 L x 5 H x 2.25" wide
- This is a universal product and is not made for any specific vehicle. Universal products may require additional parts and labour for installation.


Estimated Volumetric Shipping Weight : 12.00 Kg
