RE part number re.e46m3.coolant

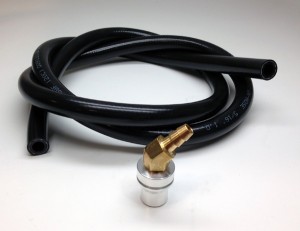

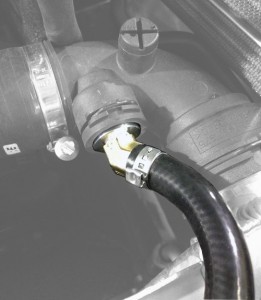

Now you can eliminate MORE plastic parts from the engine compartment of your E46 M3! Rogue Engineering is proud to introduce our E46 M3 Coolant Vent line kit. Replace your flimsy factory OEM connecting line (BMW p/n 17-11-2-229-053) with our robust and failsafe kit! It would stink to have a track day end early because of a silly plastic part that had gone bad...

Features and Benefits
- No more failing plastic coolant vent fittings. CNC'd 6061 ACQ aluminum is mated with a 45 degree brass elbow.
- 200psi vent hose, crimped to Rogue Engineering E46 Coolant fitting
- Includes worm gear clamp to secure to factory overflow tank and zip ties to secure to stock location on radiator support

Installation is quick and simple, and takes just a few minutes. No need to flush or drain the coolant system to replace this part.

These are a direct bolt in for the following vehicles...
2001-06 BMW E46 M3

Estimated Volumetric Shipping Weight : 3.00 Kg



E36 KIT
Click to Enlarge

E46 M3 KIT
Click to Enlarge

THIS PAGE LISTS THE HOSE KIT FOR E36 MODELS. PLEASE USE VARIATIONS BUTTON (TOP RIGHT) TO ACCESS E46 M3 APPLICATION.

Benefits of Rogue Engineering Silicone Radiator Hoses:

- More resistant to high temperatures, solvents and oil, when compared to OEM rubber hoses.
- Temperature ranges from -149° F to 500° F, much larger range than OEM (typical range for OEM is -40o F to +275o F)
- Rogue hoses can handle more pressure, with a maximum pressure of 350psi.
- Rogue silicone hoses stay flexible, whereas rubber can harden and crack over time.
- Available only in BLACK color, with discrete RE logo.
- All Rogue Engineering Silicone Radiator Hose kits come complete with new, replacement hose clamps as the factory ones are not suitable for reuse after long years of service

Application Notes:

The E36 kit replaces 11 53 1 726 344 and 11 53 1 708 499 and fits the following:

1992-1995 E36 3 Series (M50) 325i, 325is & 325i including convertible
1996-1999 E36 3 Series (M52) 328i, 328is, 323is including convertibles
1995-1999 E36 M3 (S50/S52) coupe, sedan & convertible

The E46 M3 kit replaces 11 53 7 830 716 and 11 53 7 830 715 and fits the following:

2001-2006 E46 M3 (US and Euro) including CSL

*(The E46 M3 kit includes OE factory connectors. The top radiator hose can be reversed which is required for some aftermarket supercharger kits)*

*(This listing is for the E36 hose Kit)*



Estimated Volumetric Shipping Weight : 5.00 Kg



Click to Enlarge

Click to Enlarge

RE part number s54van

If you have Got an S54 You probably have a leaking CPV.

One of the leaks from an S54 is when the Constant Pressure Valve (CPV) requires replacement.

The CPV is located on the right side of the engine (behind the exhaust manifolds). The valve has an o-ring that tends to flatten and harden over time (and heat) and no longer seals adequately.

Replacement of the valve takes about 1.5 hours (about 5 minutes when the factory headers are out).

Fortunately, this little valve is not too expensive, but you can make the replacement even better!

Solutions to a Potential Problem

By getting a replacement valve (BMW Part No: 11 11 1 318 185), replacing the stock o-ring with the Rogue Engineering CPV o-ring will allow it to last longer than stock!

When you take out the original one, the o-ring on the CPV is as hard as a rock, without elasticity. It cannot do the job of sealing up the engine block anymore.

The Rogue Engineering CPV O-Ring is made from Viton® fluoroelastomer with a temperature range of -40° to +400°F. This allows for a longer lifespan of the CPV (and less leaks!).

Currently, the replacement CPV O-Ring fit the following S54 equipped vehicles:

- 2001-06 E46 M3s (US or Euro)
- 2001-02 E36/7 MZ3 Coupe/Roadster
- 2007-08 E85 MZ4 Coupe/Convertible

*(THIS LISTING IS FOR THE O-RING ONLY)*



Estimated Volumetric Shipping Weight : 1.00 Kg
